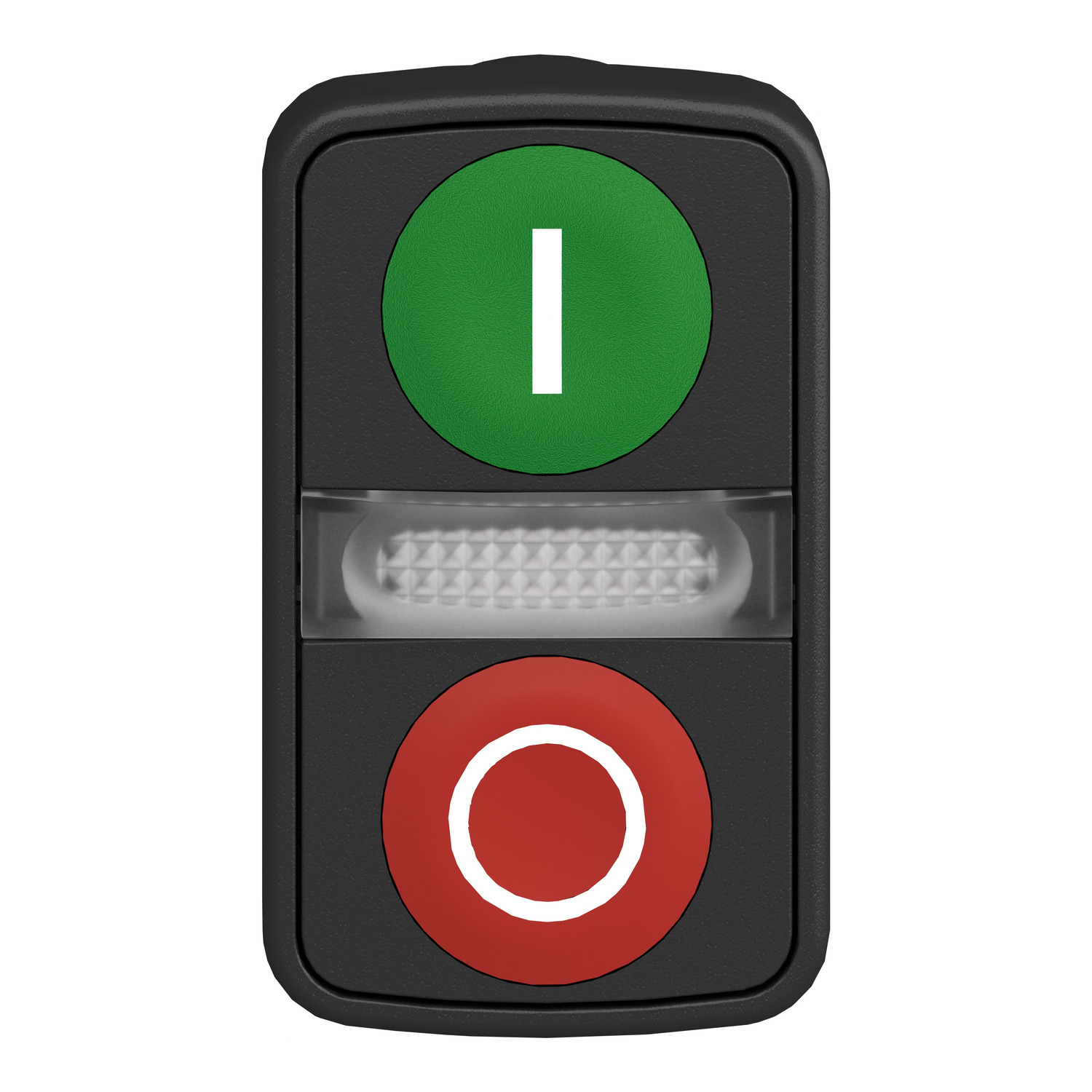

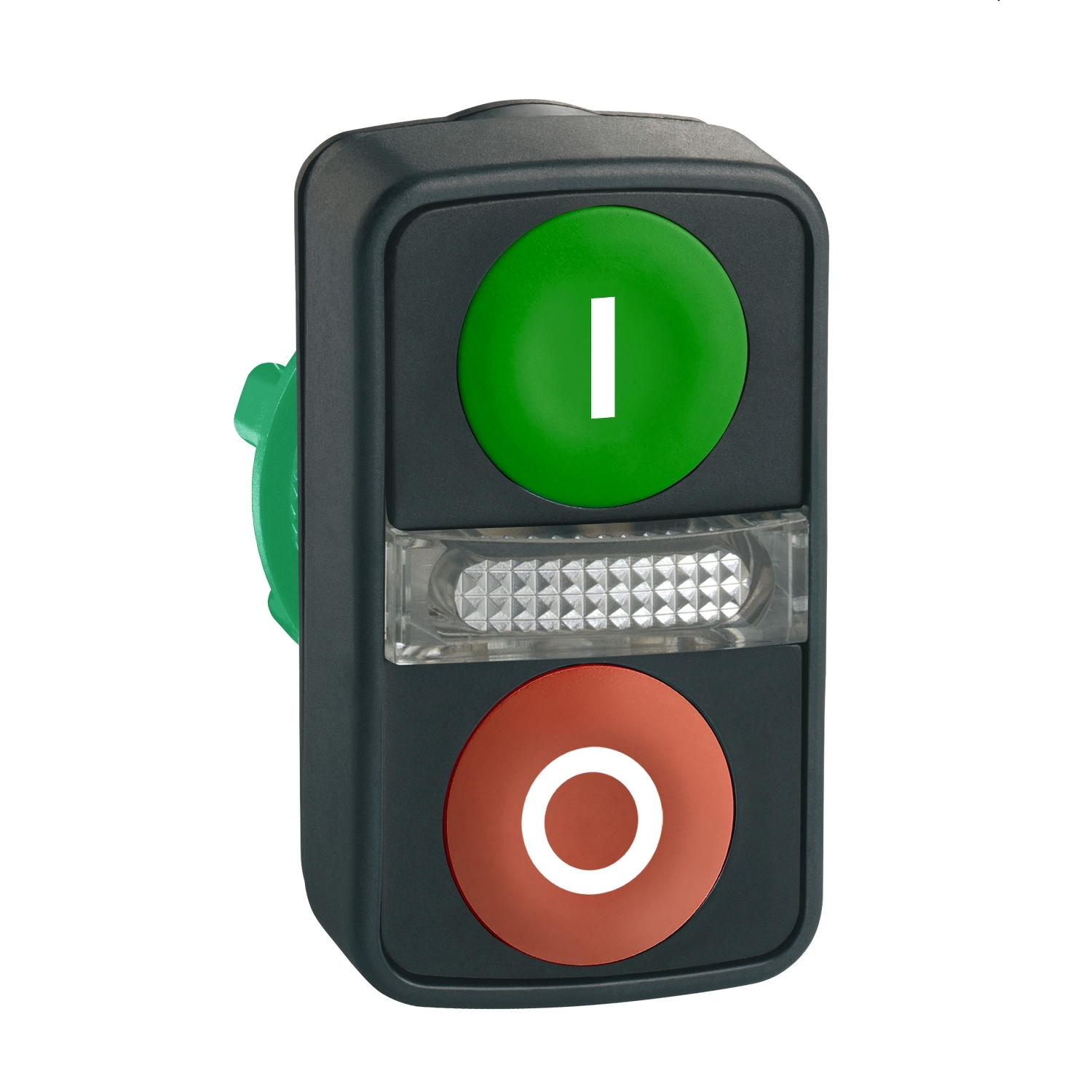

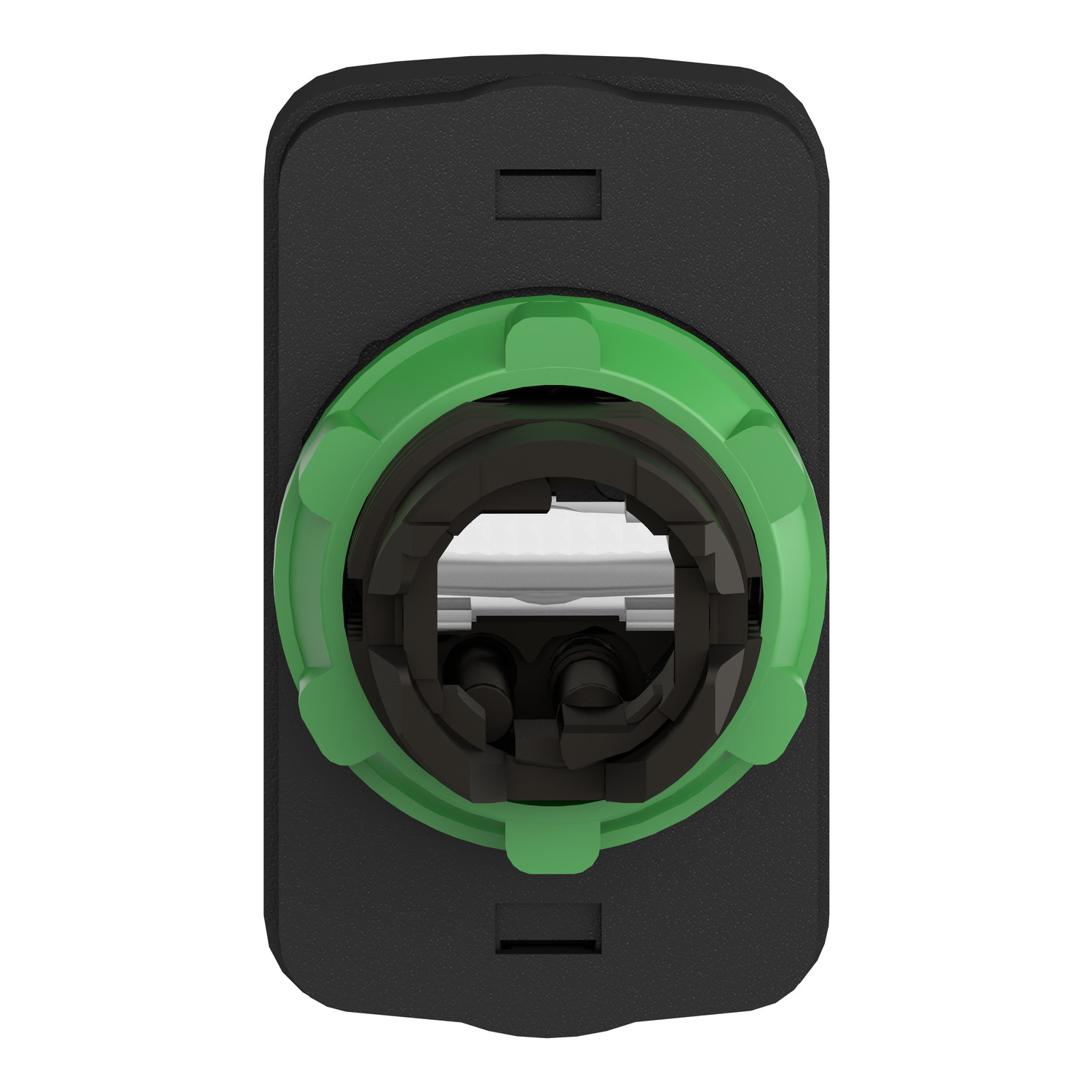

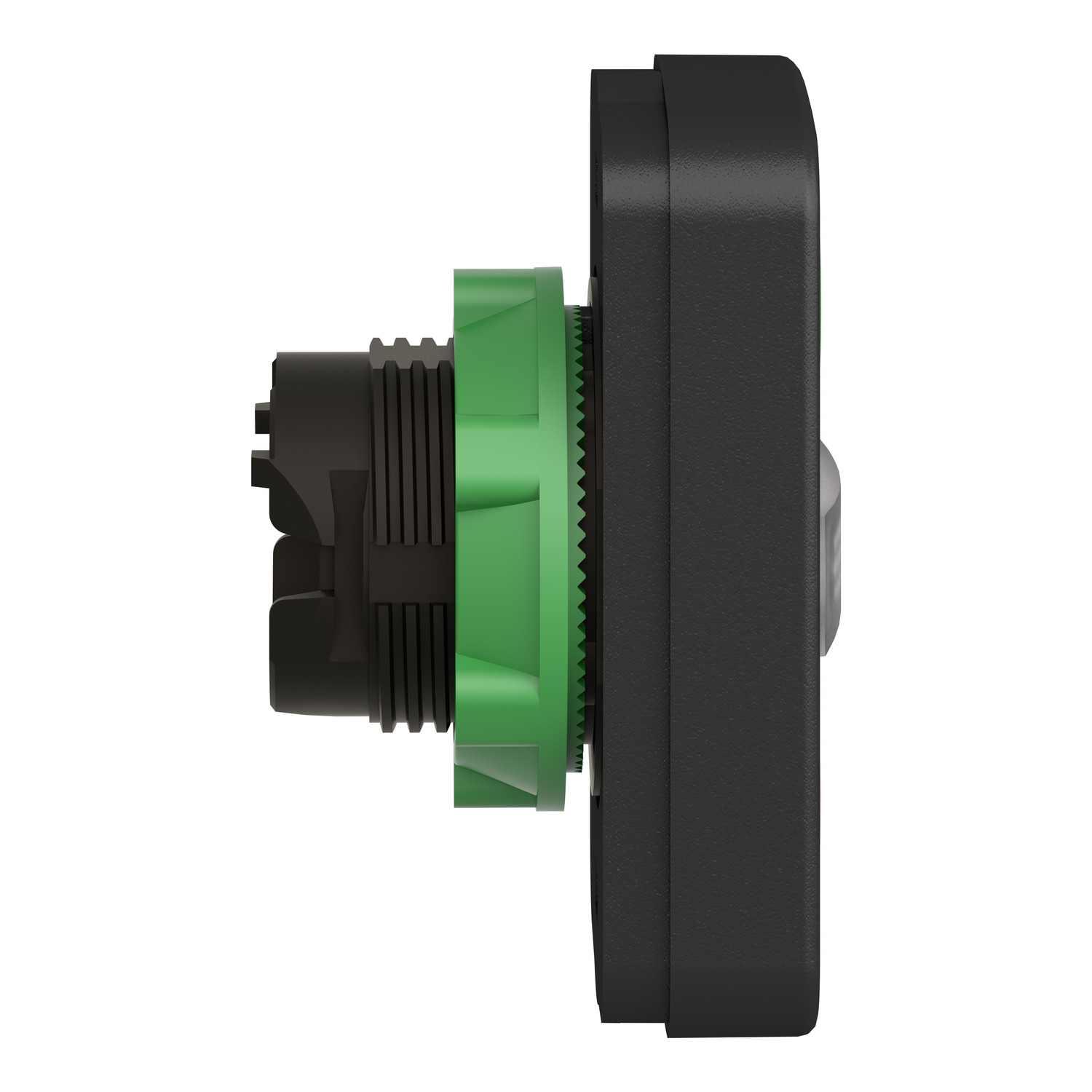

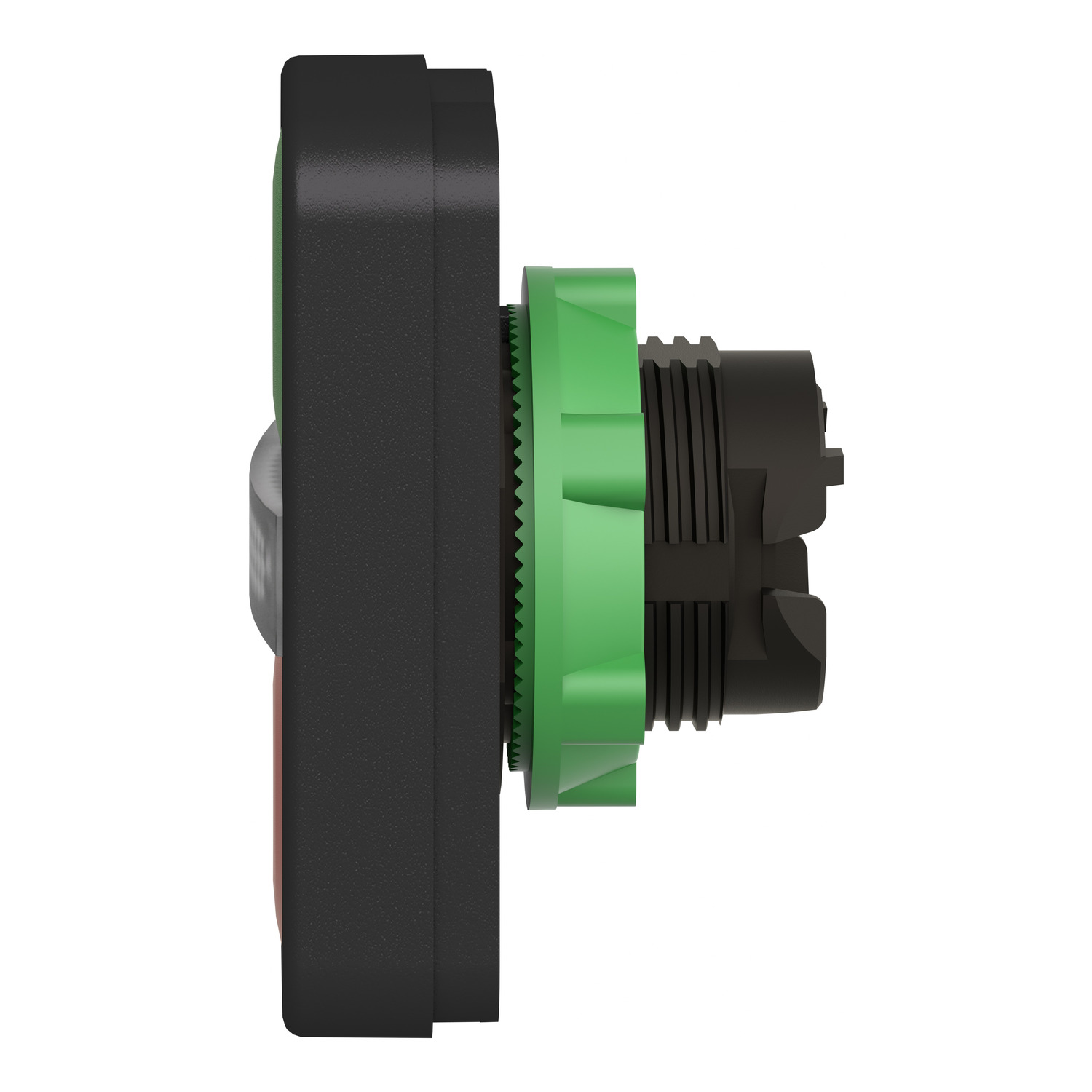

Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 pilot light + 1 red flush marked O
ZB5AW7A3741
Range of Product | Harmony XB5 |
---|---|
Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED |
Device short name | ZB5 |
Bezel material | Dark grey plastic |
Head type | Standard |
Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular |
Type of operator | spring return |
Operator profile | 2 flush push-buttons – 1 central pilot light |
Operators description | Green ”I” – red ”O” |
CAD overall width | 1.2 in (30 mm) |
---|---|
CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.2 in (30 mm) |
Net Weight | 0.051 lb(US) (0.023 kg) |
Operator profile | Green flush, I white) Red flush, O white) |
Mechanical durability | 1000000 cycles |
Station name | XALD 1 cut-out |
device presentation | Basic sub-assemblies |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
---|---|
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP66 IP67 IP69 IP69K |
NEMA degree of protection | NEMA 13 NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK05 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1 |
Product Certifications | CSA DNV UL Listed BV LROS (Lloyds register of shipping) GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Category | US10CS222467 |
---|---|
Discount Schedule | 0CS2 |
GTIN | 3389119043366 |
Returnability | Yes |
Country of origin | US |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 1.181 in (3.000 cm) |
Package 1 Width | 2.165 in (5.500 cm) |
Package 1 Length | 2.165 in (5.500 cm) |
Package 1 Weight | 0.899 oz (25.500 g) |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 200 |
Package 2 Height | 11.811 in (30.000 cm) |
Package 2 Width | 11.811 in (30.000 cm) |
Package 2 Length | 15.748 in (40.000 cm) |
Package 2 Weight | 12.244 lb(US) (5.554 kg) |
Unit Type of Package 3 | P06 |
Number of Units in Package 3 | 1600 |
Package 3 Height | 29.528 in (75.000 cm) |
Package 3 Width | 31.496 in (80.000 cm) |
Package 3 Length | 23.622 in (60.000 cm) |
Package 3 Weight | 115.593 lb(US) (52.432 kg) |
Warranty | 18 months |
---|
