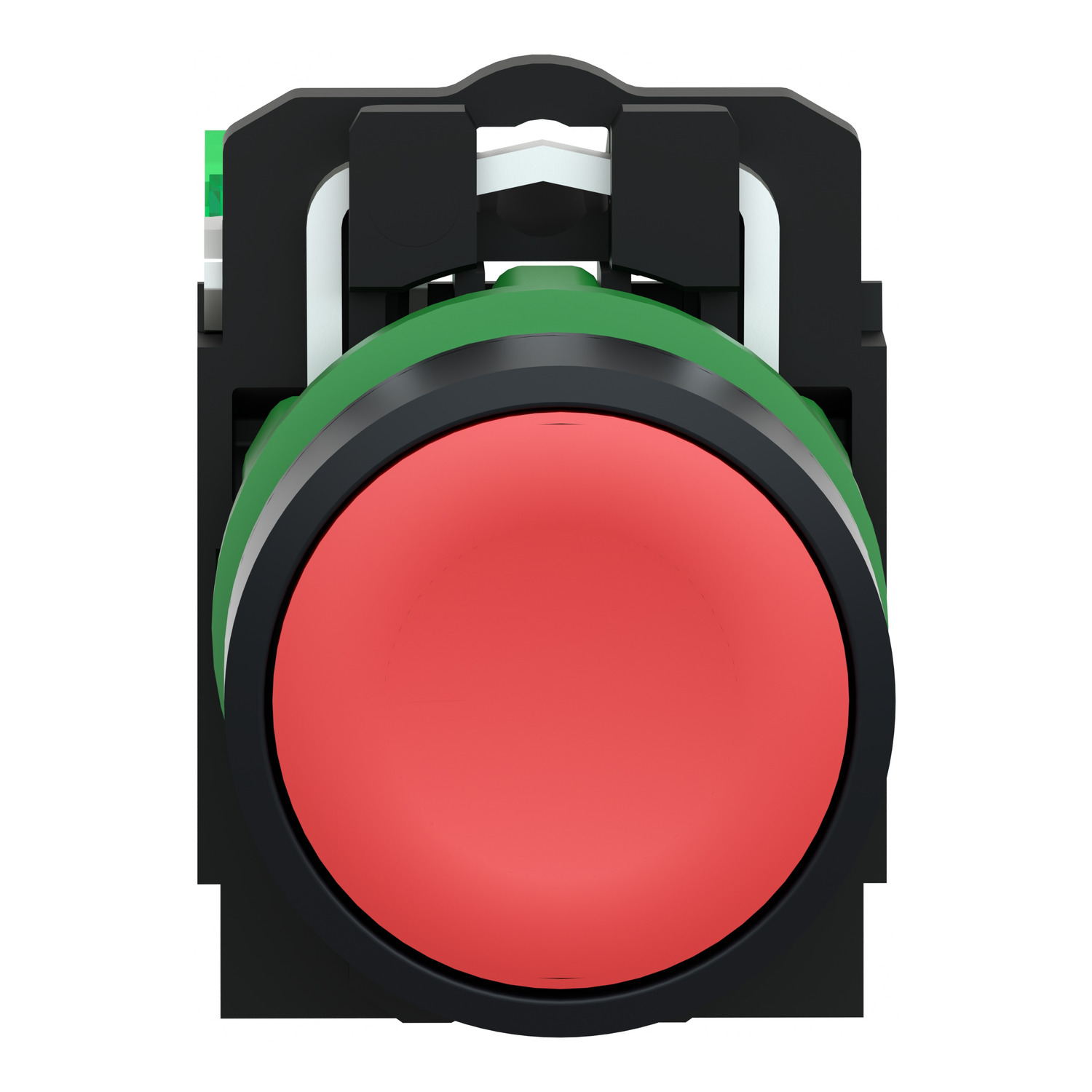

ZB5RTA4, Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, red, 22mm, spring return

MXN $1,993.00 - (IVA Incluido) + Envío

166 disponibles

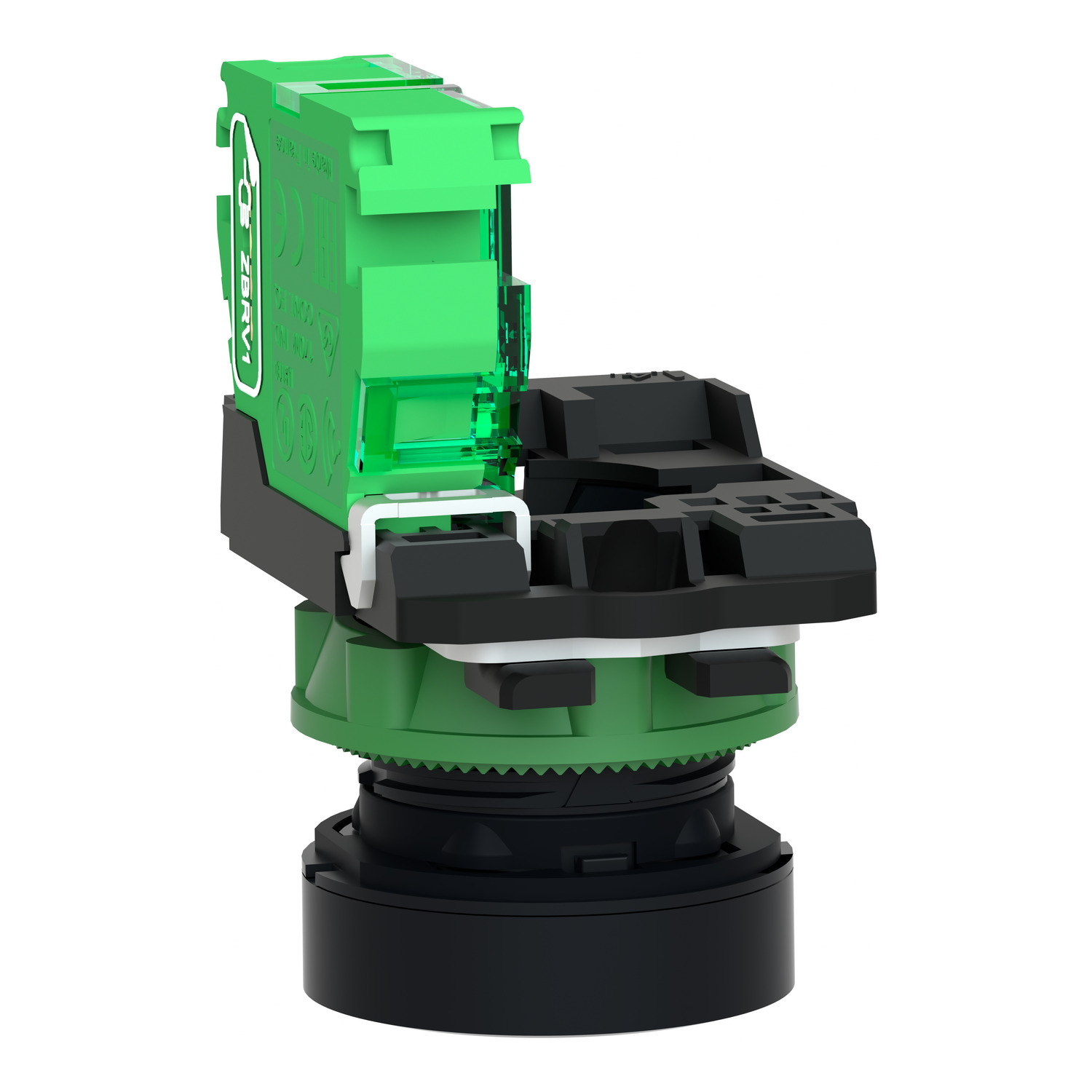

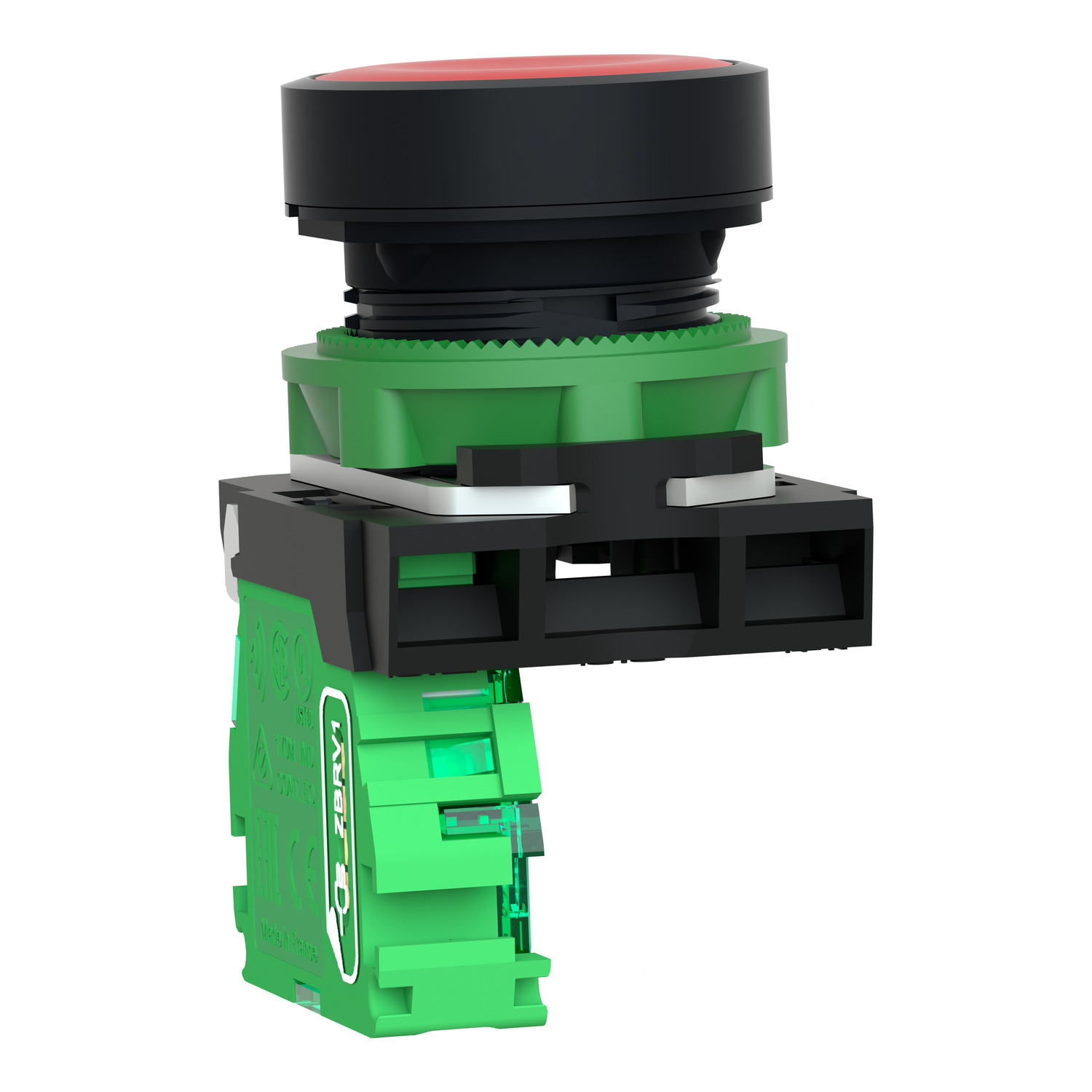

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with red clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.

Comprar Ahora
SKU: ZB5RTA4

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, red, 22mm, spring return

ZB5RTA4

Main
Range of Product Harmony XB5
Product or Component Type Wireless and batteryless transmitter
Device short name XB5R
Bezel material Dark grey plastic
Fixing collar material Plastic
Mounting diameter 0.9 in (22 mm)
Transmission frequency 2405 MHz
emission class 5M00G7W
Antenna type Omnidirectional
Complementary
Shape of signaling unit head Round
Type of operator spring return push-button with transmitter
Operator profile Red flush
Max power consumption in W 1 mW
Number of channels 16
modulation technique O-QPSK
Bandwidth 5 MHz
Antenna gain 0 dBi
Embedding Depth 1.7 in (42 mm)
CAD overall height 1.6 in (41.5 mm)
CAD overall width 1.2 in (30 mm)
CAD overall depth 1.7 in (43 mm)
Net Weight 0.099 lb(US) (0.045 kg)
Operating travel 0.2 in (4.3 mm) total travel)
Operating force 10 N C/O changing electrical state
Mechanical robustness Free fall resistance 1000 mm EN/IEC 60068-2-32
Standards CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
UL 508
Radio agreement ANATEL
ARIB T66
FCC
ICASA
RSS
Communication port protocol Zigbee green power 2.4 GHz IEEE 802.15.4
Maximum sensing distance 328.08 ft (100 m) in free field
82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure
984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Acquisition time 2 ms
Response time < 2 ms
Emission Power 3 mW
Fixing mode Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m)
Station name XALD 1…5 cut-outs
XALK 2…5 cut-outs
Electrical composition code PW1
Environment
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
Relative humidity 95 % -40…158 °F (-40…70 °C) without condensation
IP degree of protection IP66 IEC 60529 front face)
IP67 IEC 60529 front face)
IP69 IEC 60529 front face)
IP69K IEC 60529 front face)
IK degree of protection IK03 conforming to IEC 50102
Mechanical durability 1000000 cycles
Shock resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance 5 gn 11…500 Hz)IEC 60068-2-6
+/- 10 mm 2…11 Hz)IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test – test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electrostatic discharge immunity test – test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields – test level: 20 V/m (80…3000 MHz) conforming to IEC 61000-4-3
Susceptibility to electromagnetic fields – test level: 6 V/m (3000…6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Product Certifications BT 2006/95/EC
UL
GOST
CSA
C-tick
Directives 1999/5/EC – R&TTE directive
2004/108/EC – electromagnetic compatibility
Ordering and shipping details
Category US1000I22470
Discount Schedule 000I
GTIN 3606480334610
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.339 in (3.400 cm)
Package 1 Width 2.087 in (5.300 cm)
Package 1 Length 3.425 in (8.700 cm)
Package 1 Weight 1.340 oz (38.000 g)
Unit Type of Package 2 S01
Number of Units in Package 2 25
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 5.906 in (15.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 2.538 lb(US) (1.151 kg)
Contractual warranty
Warranty 18 months
Peso 0.039 kg
Dimensiones 5.3 × 8.7 × 3.4 cm
