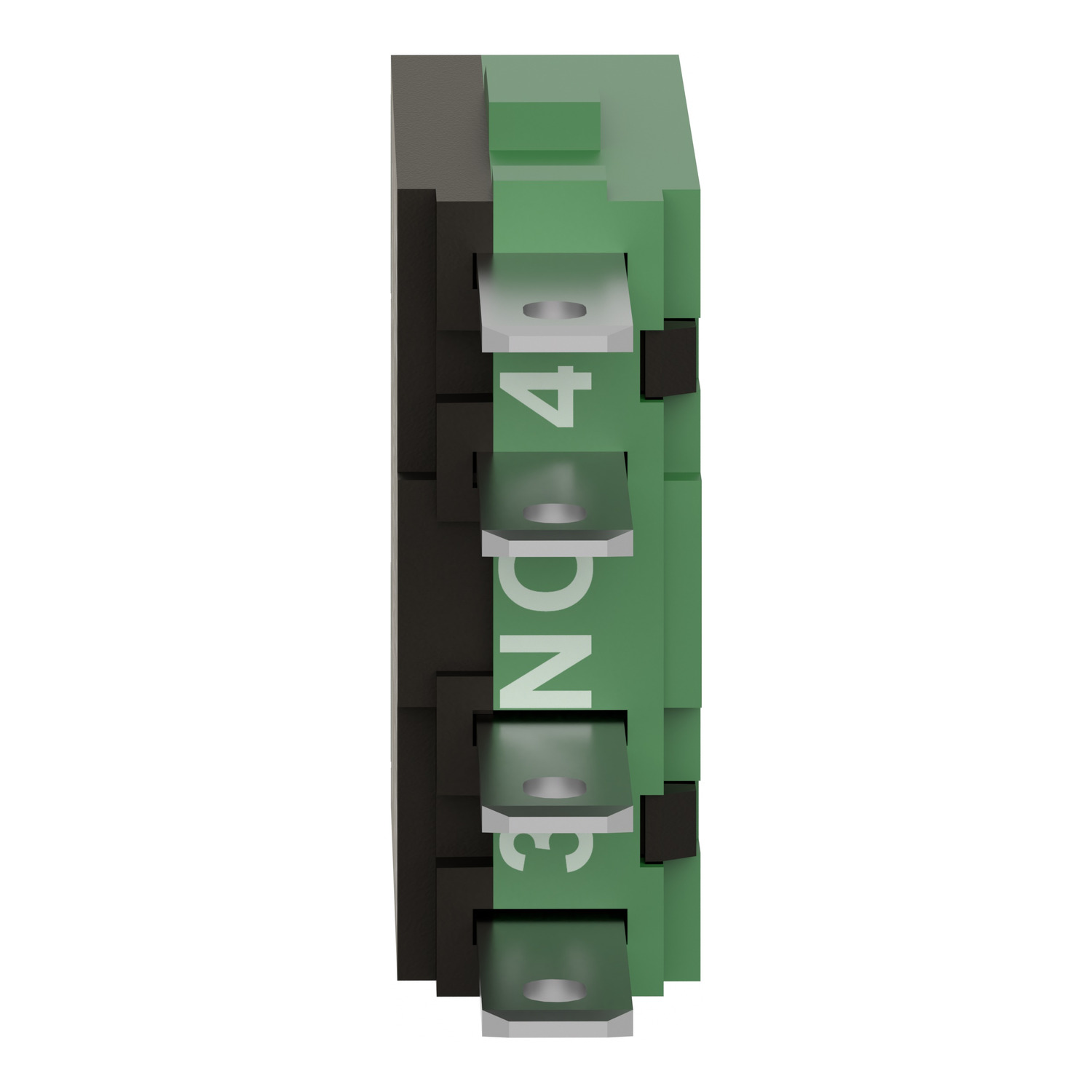

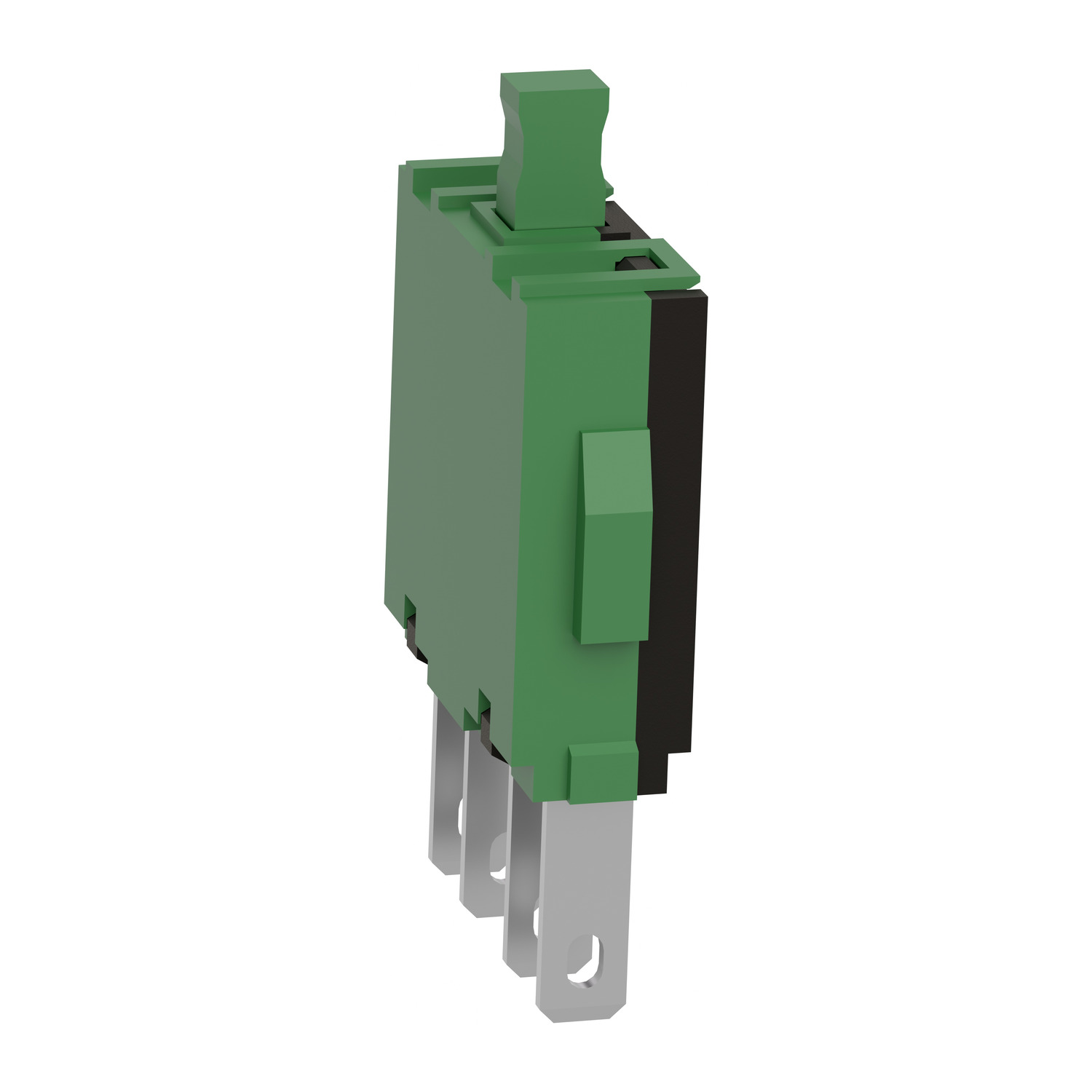

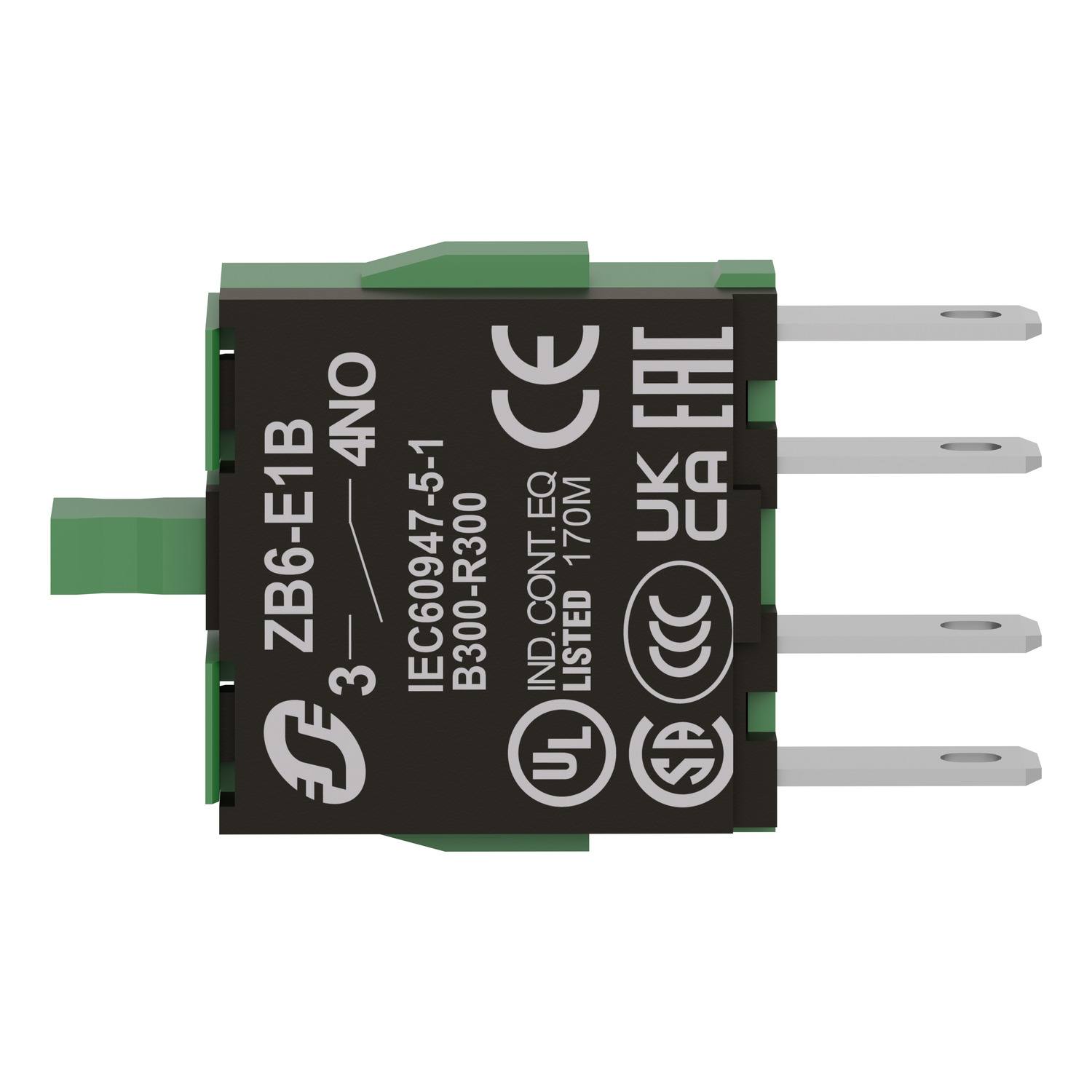

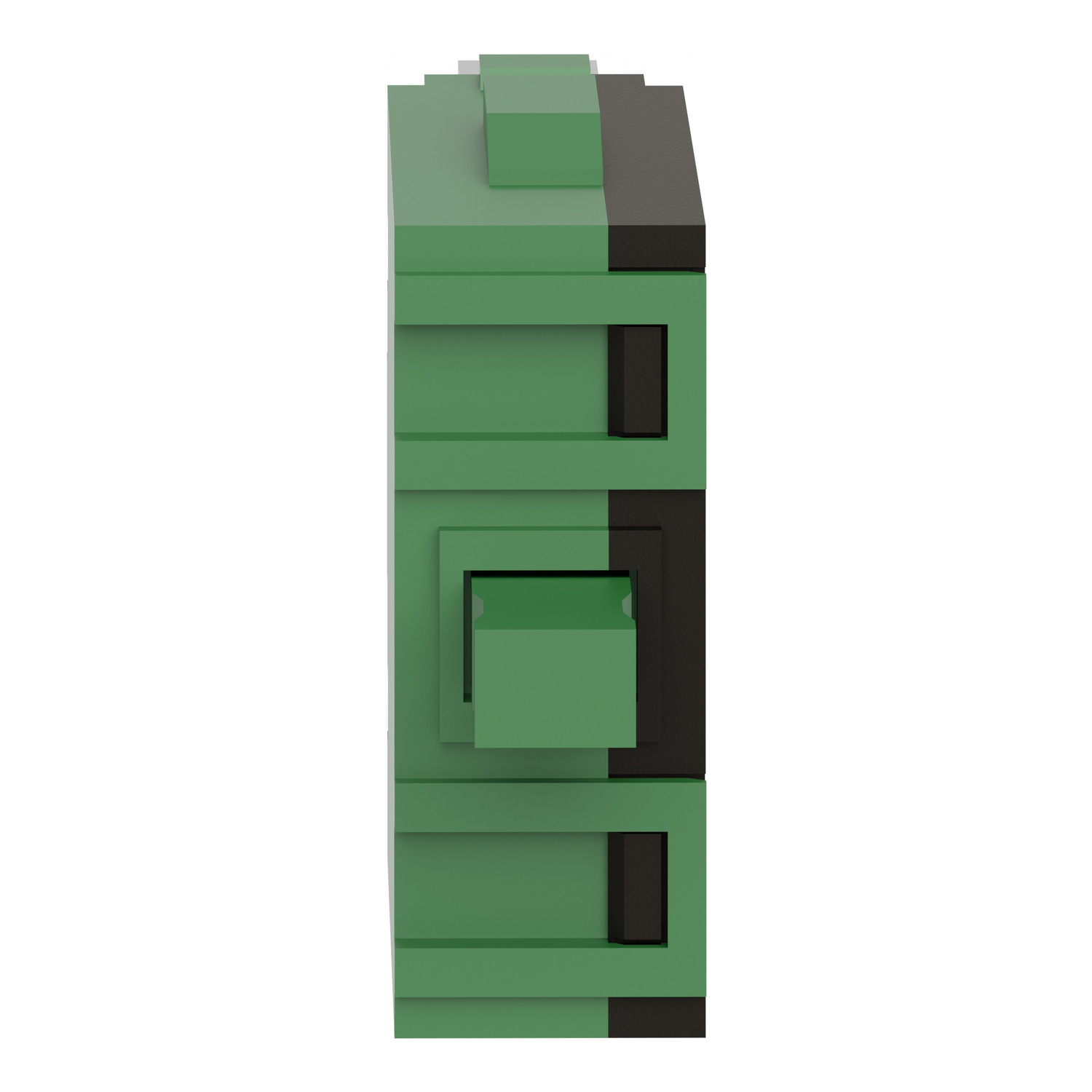

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO
ZB6E1B
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Contact block |
| Device short name | ZB6 |
| Sale per indivisible quantity | 10 |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Contact block type | Single |
| Connections – terminals | Faston connector |
| Contacts material | Silver alloy (Ag/Ni) |
| Terminals description ISO n°1 | (3-4)NO |
|---|---|
| Net Weight | 0.009 lb(US) (0.004 kg) |
| Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.08 in (2 mm) NO changing electrical state) 0.1 in (3.5 mm) total travel) |
| Operating force | 1.6 N NO changing electrical state |
| Mechanical durability | 5000000 cycles |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 1.5 A 240 V, AC-15, B300 0.1 A 250 V, DC-13, R300 0.22 A 125 V, DC-13, R300 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4 |
| protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
| IP degree of protection | IP20 IEC 60529 |
| Standards | JIS C 4520 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C 852 EN/IEC 60947-1 EN/IEC 60947-5-4 UL 508 |
| Product Certifications | UL CCC CSA GOST |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222459 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110775266 |
| Returnability | Yes |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.9 in (2.2 cm) |
| Package 1 Width | 2.6 in (6.7 cm) |
| Package 1 Length | 1.3 in (3.2 cm) |
| Package 1 Weight | 0.07 oz (2.0 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.9 in (2.2 cm) |
| Package 2 Width | 1.3 in (3.2 cm) |
| Package 2 Length | 2.6 in (6.7 cm) |
| Package 2 Weight | 1.0 oz (28.0 g) |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 5.9 in (15.0 cm) |
| Package 3 Width | 5.9 in (15.0 cm) |
| Package 3 Length | 15.7 in (40.0 cm) |
| Package 3 Weight | 2.857 lb(US) (1.296 kg) |
| Warranty | 18 months |
|---|
