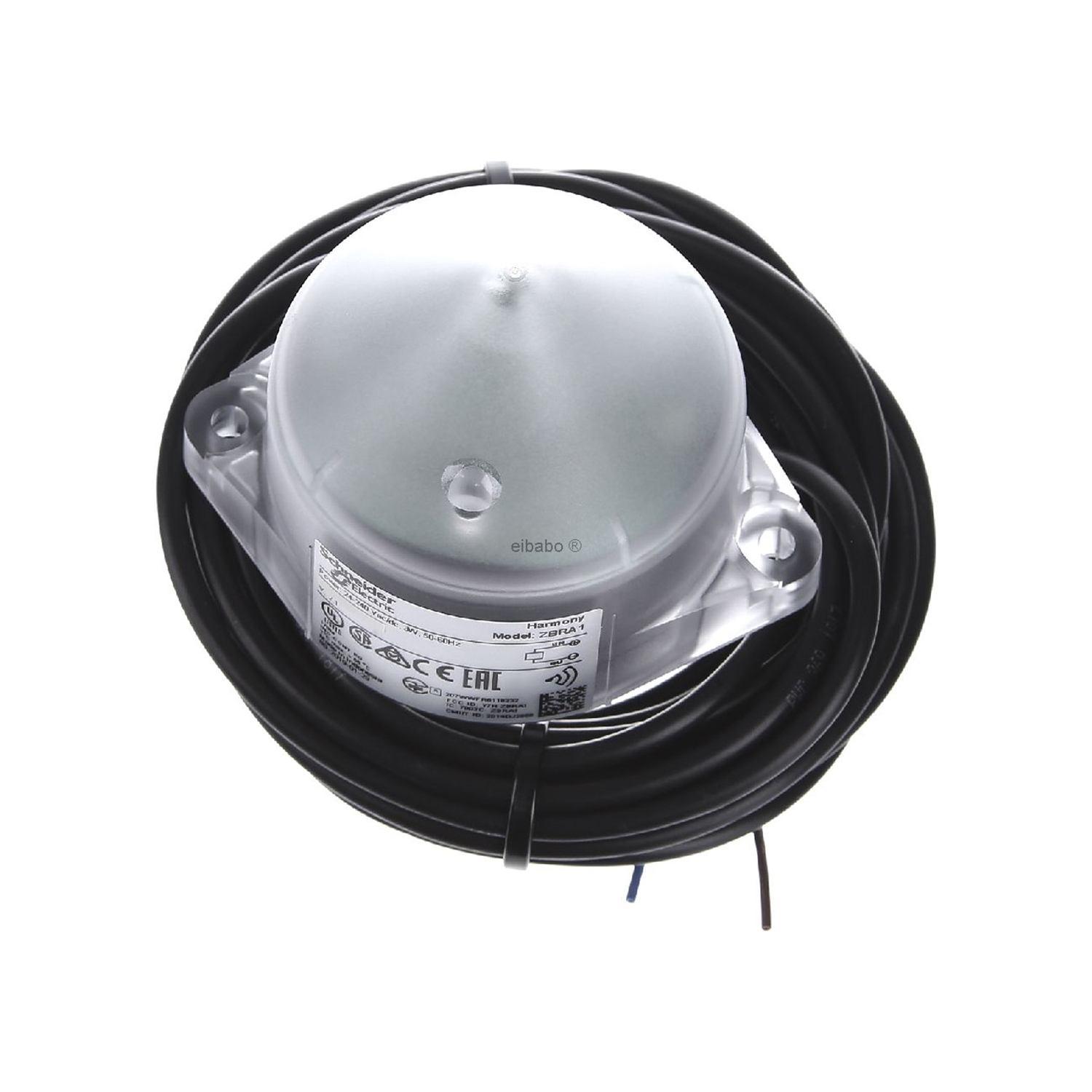

Wireless and batteryless range, Harmony XB5R, Relay Antenna, AC DC, 5m cable output
ZBRA1
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Wireless and batteryless range |
| Device short name | ZBRA |
| product destination | Wireless Schneider Electric ecosystem devices |
| Control station application | Transceiver (emission and reception) |
| Colour of base of enclosure | Black RAL 9011) |
| Colour of cover | Transparent |
| Material | Polycarbonate |
| frequency | 2405 MHz transmitter 2405 MHz receiver |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
|---|---|
| Antenna gain | 0 dBi |
| Maximum sensing distance | 984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Emission Power | 3 mW |
| [Us] Rated Supply Voltage | 24…240 V AC/DC 50/60 Hz – 10…10 % |
| Maximum power consumption in W | 4 W AC/DC |
| Operating position | Vertical |
| Status LED | 1 LED Green power ON 1 LED Green emission signal |
| Overvoltage category | III IEC 60664-1 |
| Rated short-duration power frequency withstand voltage | 4 kV 50 Hz IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Electrical connection | 2 conductors cable 0.0005 in² (0.34 mm²) – flexible – 16.4 ft (5 m) conforming to IEC 60947-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Short-circuit protection | 0.4 A fuse fast blow |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| modulation technique | O-QPSK |
| Bandwidth | 5 MHz |
| Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 |
| Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 131 °F (55 °C) 0.1 m |
| Pollution degree | 3 IEC 60664-1 |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Radio agreement | RSS SRRC ANATEL, type III ETSI EN 301 489-3 ARIB T66, class 2 ETSI EN 301 489-3 FCC, category 2 ETSI EN 300 440-1 ICASA, category 1 ETSI EN 300 440-1 |
| Product Certifications | CCC BT 2006/95/EC UL GOST CSA CE C-tick |
| Directives | 1999/5/EC – R&TTE directive 2004/108/EC – electromagnetic compatibility |
| Vibration resistance | +/-0.5 mm 10…55 Hz)IEC 60068-2-6 6 gn 55…150 Hz)IEC 60068-2-6 |
| Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Insulation resistance | > 500 MOhm 500 V DC NF C 20030 |
| [Ui] rated insulation voltage | 250 V IEC 60664-1 |
| Electromagnetic compatibility | Immunity for industrial environments conforming to IEC 61000-6-2 Conducted and radiated emissions class B conforming to CISPR 22 Electrostatic discharge immunity test – test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80…2000 MHz) conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields – test level: 3 V/m (80…2700 MHz, distance = 20 m) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test – test level: 2 kV conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test – test level: 1 kV (differential mode) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 2 kV (common mode) conforming to IEC 61000-4-5 Conducted RF disturbances – test level: 10 V conforming to IEC 61000-4-6 Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11 Radiated emission conforming to ETSI EN 300 440-1 Conducted emission conforming to EN 300-489-1 Conducted emission conforming to ETSI EN 300 489-3 Radiated emission conforming to ETSI EN 300 440-2 |
| Category | US1000I22470 |
|---|---|
| Discount Schedule | 000I |
| GTIN | 3606480334689 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.150 in (8.000 cm) |
| Package 1 Width | 3.150 in (8.000 cm) |
| Package 1 Length | 7.362 in (18.700 cm) |
| Package 1 Weight | 9.418 oz (267.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 11.669 lb(US) (5.293 kg) |
| Warranty | 18 months |
|---|
