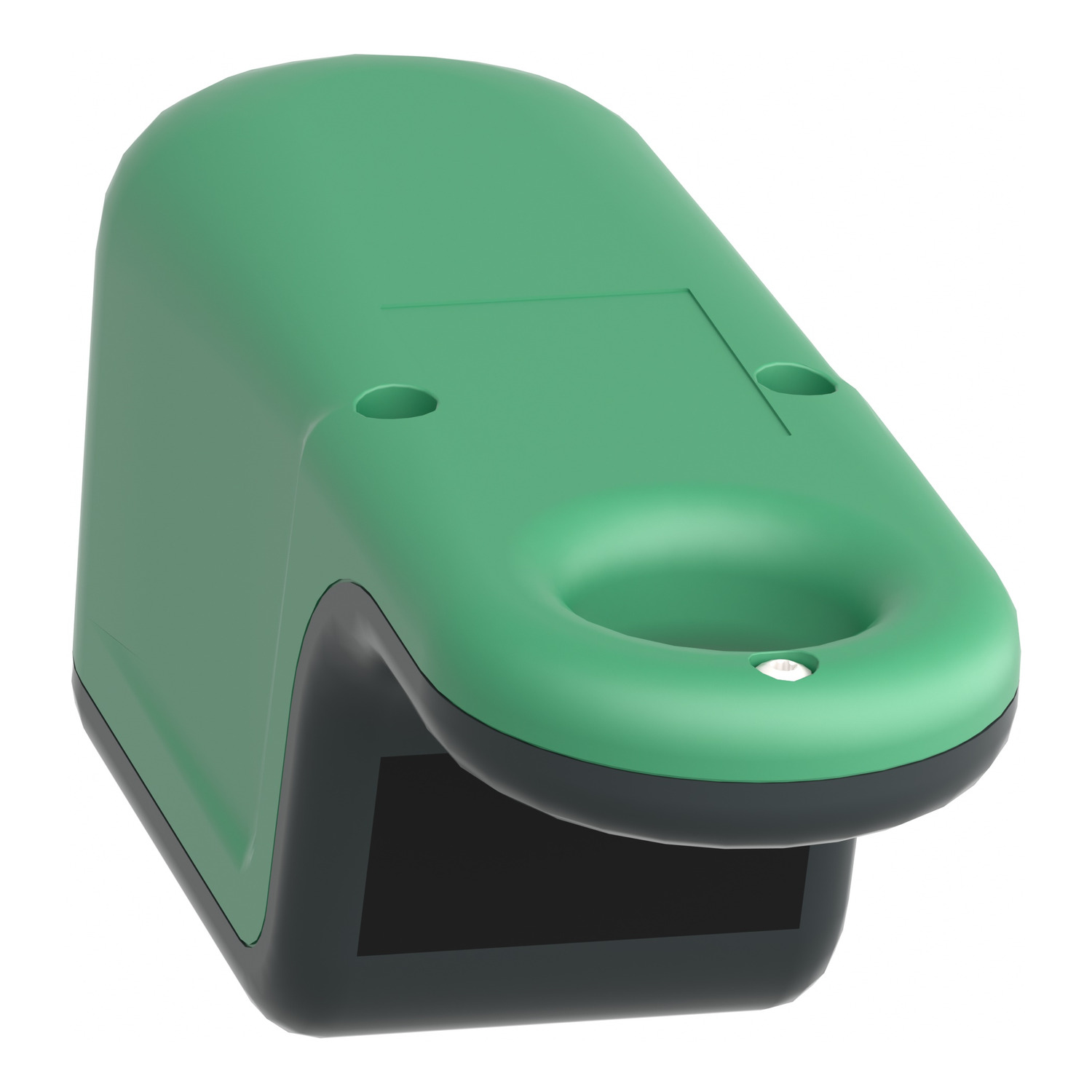

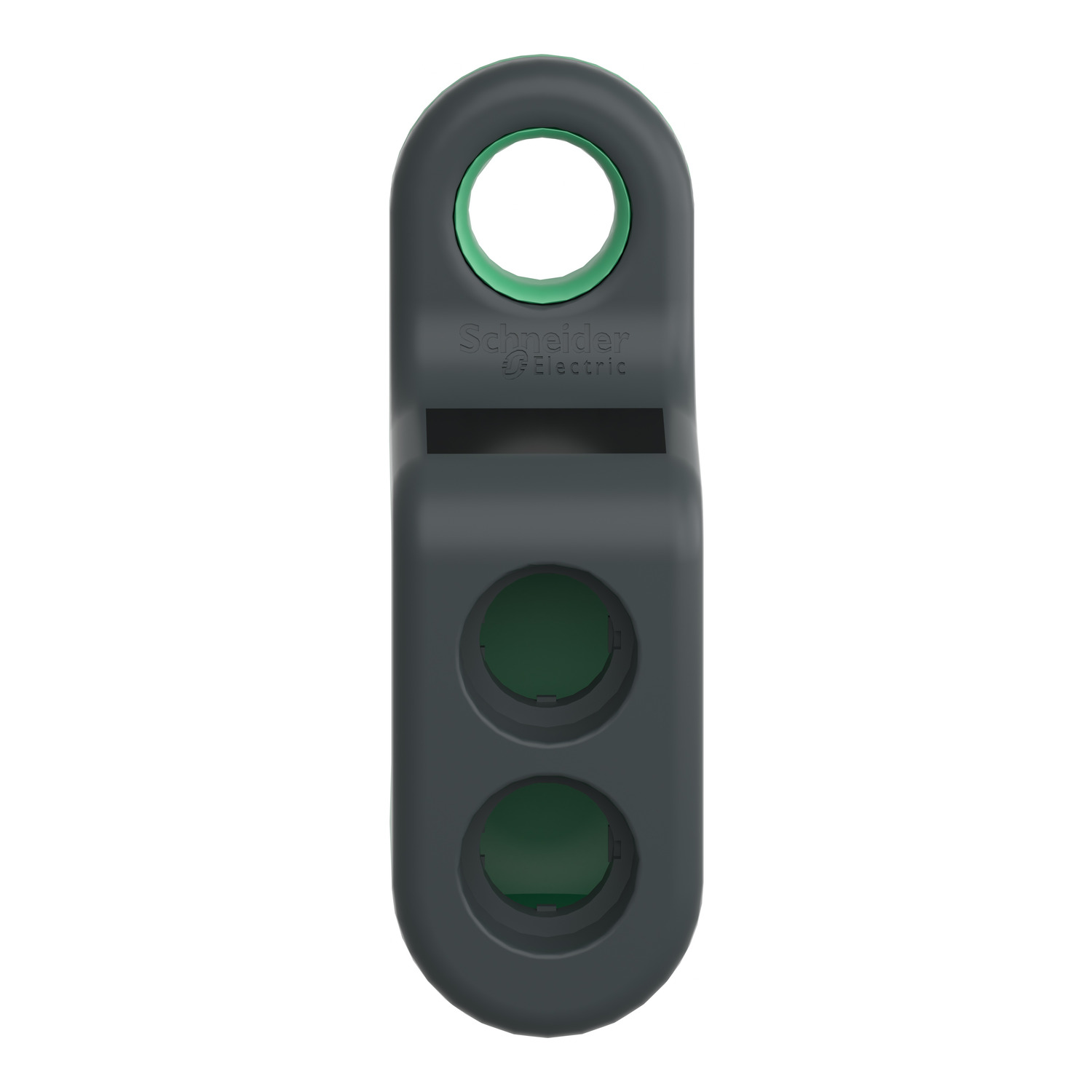

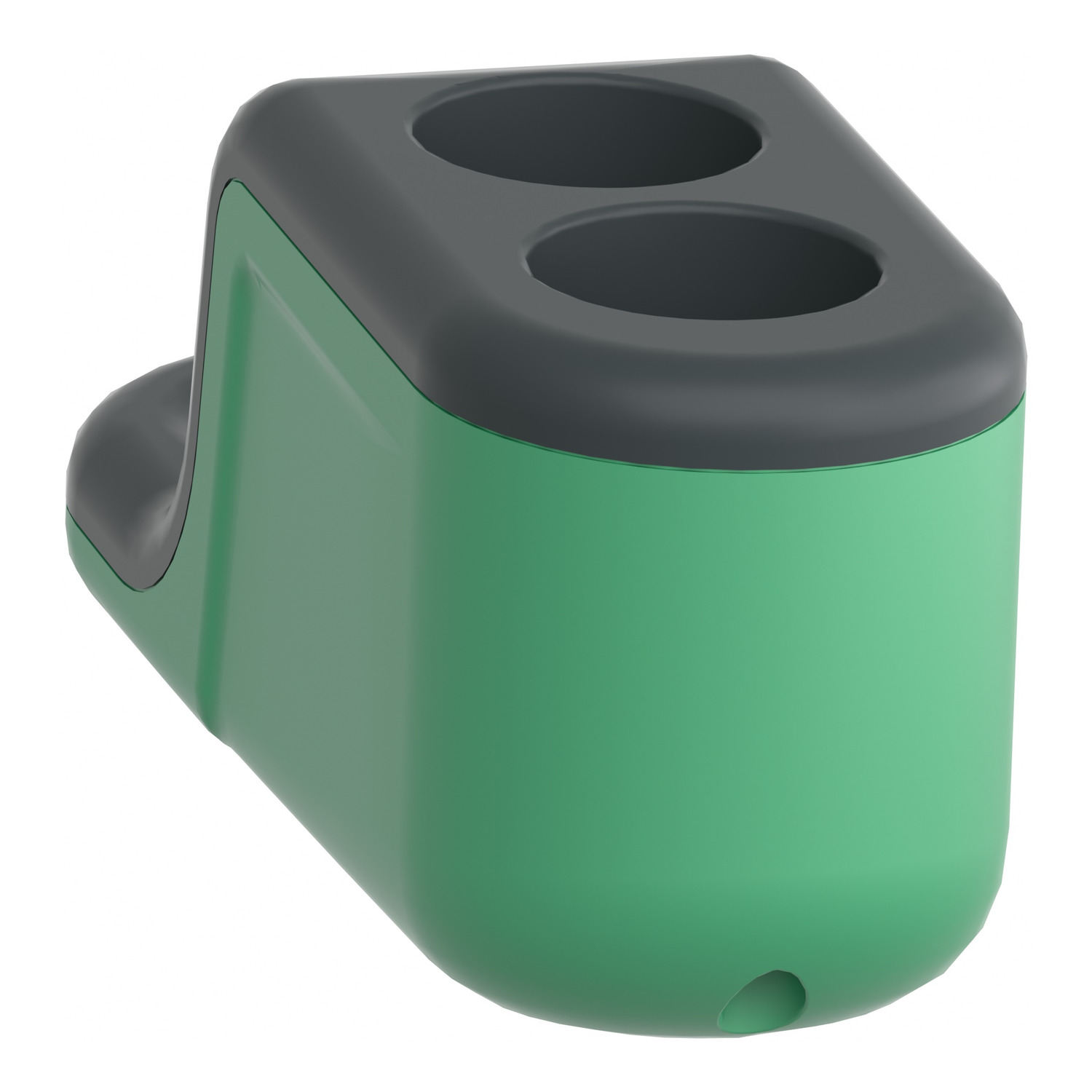

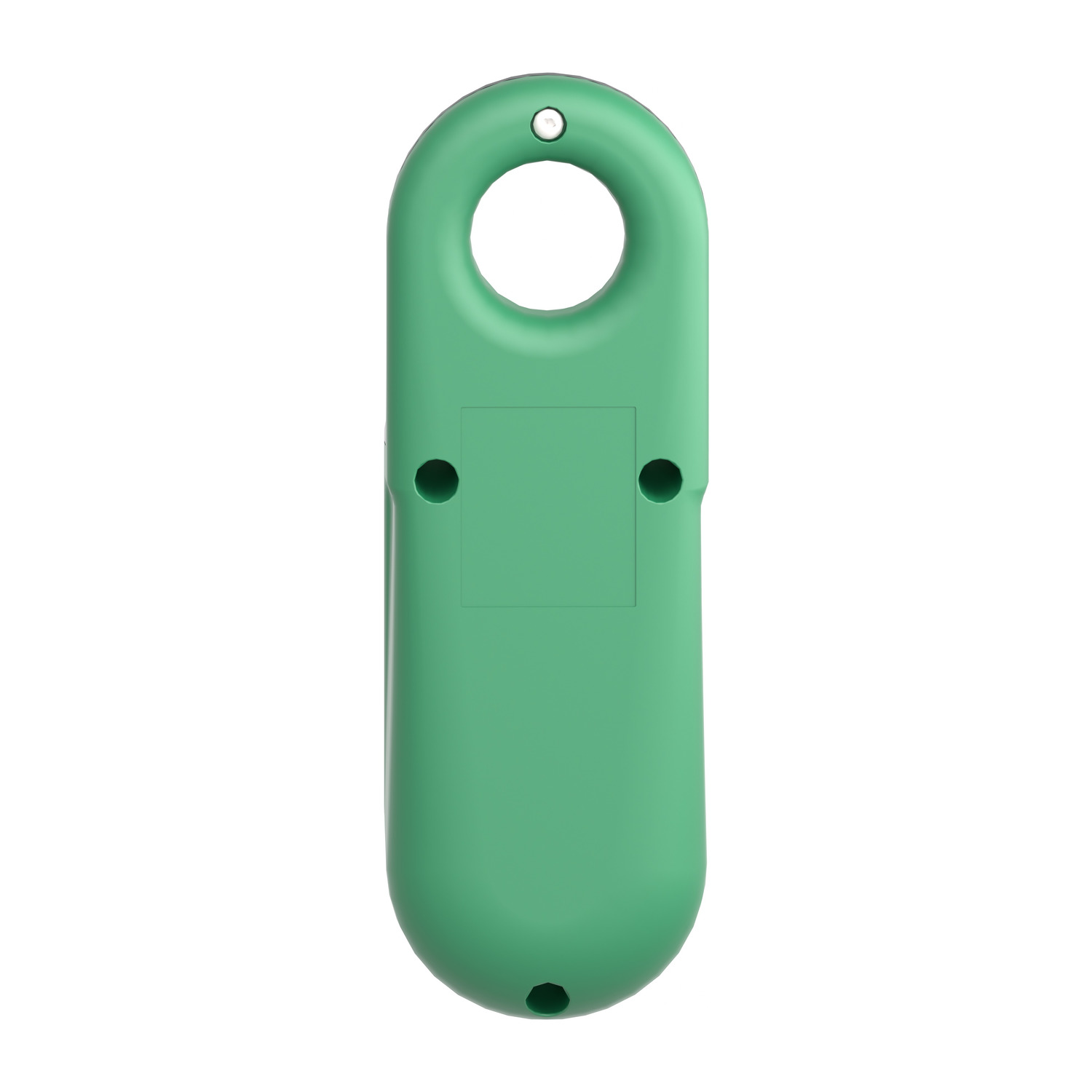

Empty handy box for mobile use, Harmony XB5R, plastic, green, 2 cut outs
ZBRM22
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Empty handy box |
| Device short name | ZBRM |
| product destination | For XB5R Ø 22 mm control units |
| Control station application | Two functions |
| Colour of base of enclosure | Green Pantone 355C) |
|---|---|
| Colour of cover | Dark grey RAL 7016) |
| Material | Polycarbonate |
| Net Weight | 0.24 lb(US) (0.11 kg) |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13.0000000000…131.0000000000 °F (-25…55 °C) |
| IP degree of protection | IP65 IEC 60529 |
| IK degree of protection | IK03 conforming to EN 50102 |
| Standards | ETSI EN 301 489-3 ETSI EN 301 489-1 ETSI EN 300 440-2 UL 508 CSA C22.2 No 14 ETSI EN 300 440-1 EN/IEC 60947-5-1 |
| Product Certifications | FCC C-tick CE ANATEL SRRC BT 2006/95/EC GOST RSS |
| Directives | 1999/5/EC – R&TTE directive 2004/108/EC – electromagnetic compatibility |
| Category | US1000I22470 |
|---|---|
| Discount Schedule | 000I |
| GTIN | 3606480673542 |
| Returnability | Yes |
| Country of origin | HU |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.5 in (6.4 cm) |
| Package 1 Width | 2.7 in (6.8 cm) |
| Package 1 Length | 6.6 in (16.8 cm) |
| Package 1 Weight | 5.04 oz (143 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 11.257 lb(US) (5.106 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 256 |
| Package 3 Height | 29.5 in (75 cm) |
| Package 3 Width | 23.6 in (60 cm) |
| Package 3 Length | 31.5 in (80 cm) |
| Package 3 Weight | 104.59 lb(US) (47.44 kg) |
