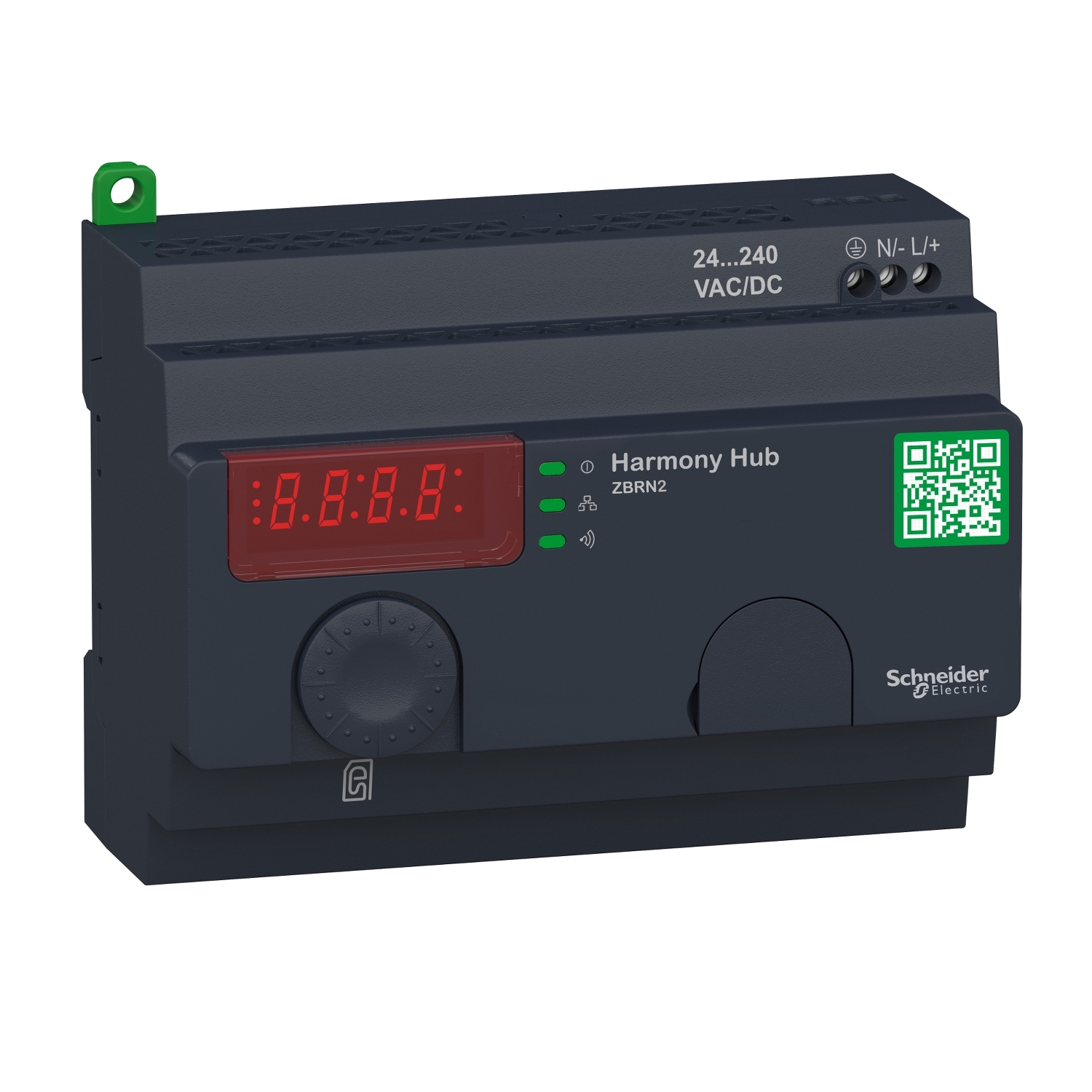

ZBRN2, Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24…240V AC DC

MXN $8,306.00 - (IVA Incluido) + Envío

Sin existencias

This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)

SKU: ZBRN2

Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24…240V AC DC

ZBRN2

Main
Range of Product Harmony
Product or Component Type Harmony Hub wireless/Serial Line gateway
Device short name ZBRN2
Product Specific Application Wireless Schneider Electric devices ecosystem
Function of module Zigbee green power concentrator
Communication port protocol Modbus client application
Antenna type Integrated
Transmission frequency 2405…2480 MHz
Complementary
Maximum radio communication distance 328.08 ft (100 m) in free field
820.2 ft (250 m) if a relay antenna is located between the transmitter and Harmony Hub
196.9 ft (60 m) if an external antenna is connected to Harmony Hub
82.02 ft (25 m) with Harmony Hub installed in a metal housing or in a closed metal enclosure
Radio response time < 30 ms
Radio channels utilisation <= 60 devices
[Us] Rated Supply Voltage 24…240 V AC/DC 50/60 Hz – 10…10 %
Immunity to microbreaks 10 ms
Maximum power consumption in W 4 W AC/DC
Breaking capacity 15 W
Breaking capacity 750 VA
Control circuit frequency 50…60 Hz +/- 10 %
Short-circuit protection 16 A GB2 circuit breaker
Operating position Any position
Mounting support 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Mounting plate
Electrical connection 1 conductor cable 0.0003…0.006 in² (0.2…4 mm²) – AWG 24…AWG 12 – solid – without cable end IEC 60947-1
2 conductors cable 0.0003…0.002 in² (0.2…1.5 mm²) – AWG 24…AWG 16 – solid – without cable end IEC 60947-1
1 conductor cable 0.0003…0.001 in² (0.2…0.75 mm²) – AWG 24…AWG 14 – flexible – with cable end IEC 60947-1
2 conductors cable 0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 18 – flexible – with cable end IEC 60947-1
Tightening torque 3.10…3.5 lbf.in (0.35…0.4 N.m) EN/IEC 60947-1
3.09…3.54 lbf.in (0.35…0.40 N.m) EN/IEC 60947-1
Housing material Self-extinguishing plastic
Status LED 1 LED Green power ON
1 LED Yellow communication network
5 LEDs Red function mode
1 LED green and yellow reception signal
Rated short-duration power frequency withstand voltage 1.5 kV 50 Hz EN/IEC 60947-5-1
[Uimp] rated impulse withstand voltage 4 kV
Surge withstand 1 kV differential mode IEC 61000-4-5
2 kV common mode IEC 61000-4-5
Width 4.8 in (122 mm)
Height 3.5 in (90 mm)
Depth 2.4 in (60 mm)
Net Weight 0.60 lb(US) (0.27 kg)
Antenna gain 0 dBi
Integrated connection type 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2…115.2 kbauds, 2 twisted shielded pairs
Data storage equipment SD card
Topology Devices linked by daisy-chaining or tap junctions
Data format 7 or 8 bits, 1 or 2 stop bits
Parity No
Even
Odd
Environment
Radio agreement ANATEL, type III ETSI EN 301 489-3
FCC, category 2 ETSI EN 300 440-1
ICASA
RSS, category 1 ETSI EN 300 440-1
SRRC
Product Certifications GOST
CE
UL
C-tick
CSA
CCC
Directives 2006/95/EC – low voltage directive
2004/108/EC – electromagnetic compatibility
1999/5/EC – R&TTE directive
Standards CSA C22.2 No 14
EN 62311
EN/IEC 61131-2
ETSI EN 300 440-2
ETSI EN 300 328
EN/IEC 60950-1
UL 508
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Relative humidity 90 % -13…131 °F (-25…55 °C), without condensation ETSI EN 300 440-1
Operating altitude 0…6561.68 ft (0…2000 m)
Storage altitude 0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance +/- 3.5 mm 5…14 Hz) IEC 60068-2-6
1 gn 5…150 Hz) on panel mounting IEC 60068-2-6
2 gn 8…150 Hz) on DIN rail IEC 60068-2-6
Shock resistance 10 gn 16 ms) 6000 shocks IEC 60068-2-27
IP degree of protection IP20 IEC 60529 casing)
IP20 terminals)
Pollution degree 2 IEC 60664-1
Electromagnetic compatibility 1.2/50 µs shock waves immunity test – test level: 1 kV (differential mode) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test – test level: 2 kV (common mode) conforming to IEC 61000-4-5
Immunity to microbreaks and voltage drops – test level: 10 ms conforming to IEC 61000-4-11
Dielectric strength 3000 V between input and output AC
4250 V between input and output DC
1500 V between input and ground AC
2150 V between input and ground DC
Ordering and shipping details
Category US1000I22470
Discount Schedule 000I
GTIN 3606480528491
Returnability Yes
Country of origin ID
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.9 in (7.3 cm)
Package 1 Width 3.8 in (9.6 cm)
Package 1 Length 5.1 in (13 cm)
Package 1 Weight 10.9 oz (308 g)
Unit Type of Package 2 S02
Number of Units in Package 2 10
Package 2 Height 5.9 in (15 cm)
Package 2 Width 11.8 in (30 cm)
Package 2 Length 15.7 in (40 cm)
Package 2 Weight 7.758 lb(US) (3.519 kg)
Peso 0.323 kg
