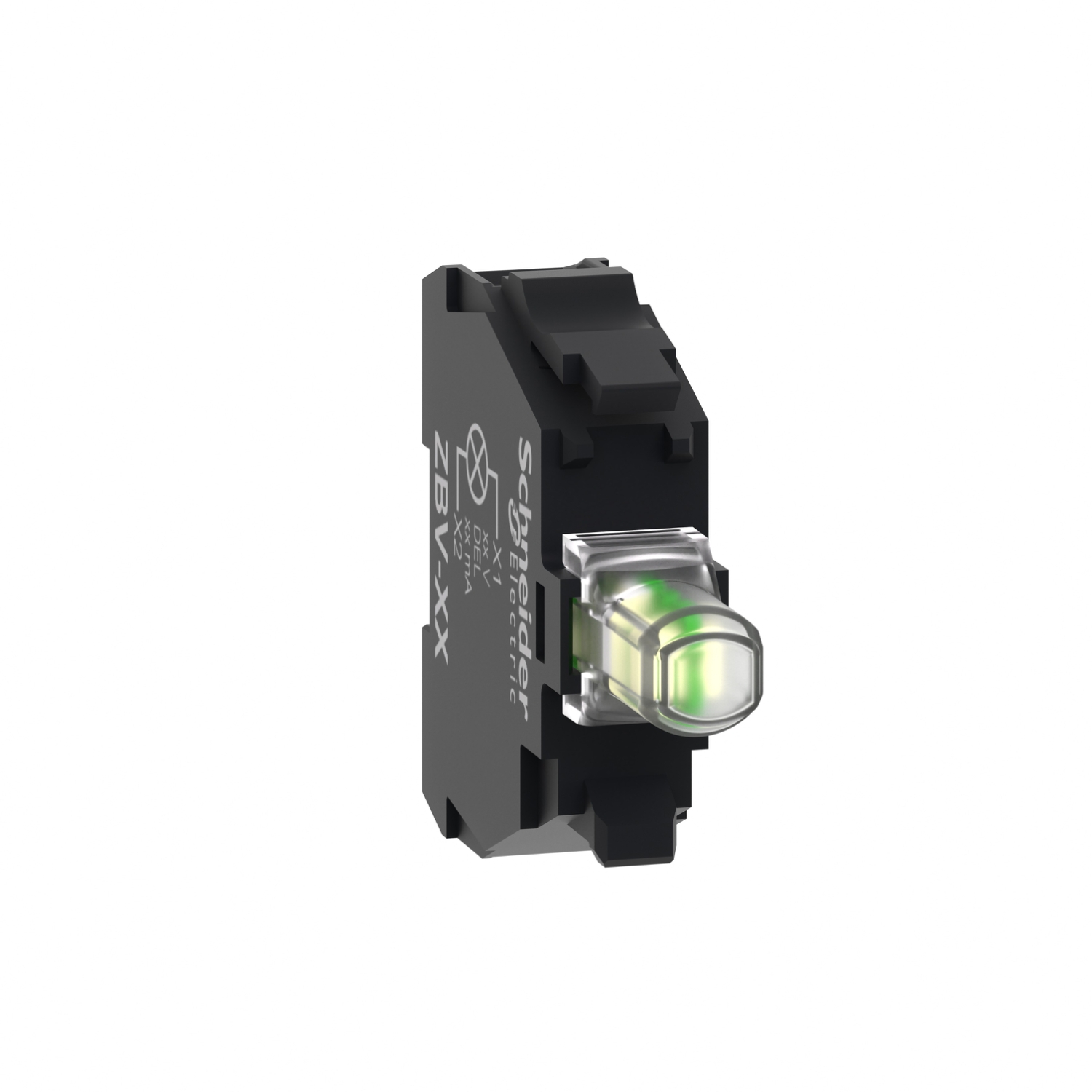

ZBVG1, Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110…120V AC

MXN $418.00 - (IVA Incluido) + Envío

75 disponibles

This Harmony ZB, XB5 white Light block operates with a universal LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Comprar Ahora
SKU: ZBVG1

Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110…120V AC

ZBVG1

Main
Range of Product Harmony XB4
Harmony XB5
Product or Component Type Light block
Device short name ZBV
Sale per indivisible quantity 5
Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Signalling type Steady
Light source Universal LED
Bulb base Integral LED
Light block supply Direct
Light source colour White
[Us] rated supply voltage 110…120 V AC 50/60 Hz
Complementary
Net Weight 0.037 lb(US) (0.017 kg)
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Current Consumption 19 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
Mounting of block Front mounting
Electrical composition code M1
M2
M3
M4
M5
M6
M10
MF1
P1
P2
PF1
device presentation Basic element
Environment
protective treatment TH
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
IP degree of protection IP20 IEC 60529
Standards IEC 60947-5-5
UL 508
JIS C8201-5-1
IEC 60947-5-4
CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-1
JIS C8201-1
Product Certifications UL Listed
CSA
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
[Us] rated supply voltage 110…120 V
Ordering and shipping details
Category US10CS222469
Discount Schedule 0CS2
GTIN 3389110089660
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.2 in (5.6 cm)
Package 1 Width 1.7 in (4.4 cm)
Package 1 Length 2.1 in (5.4 cm)
Package 1 Weight 0.3 oz (9.0 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 2.2 in (5.6 cm)
Package 2 Width 1.7 in (4.4 cm)
Package 2 Length 2.1 in (5.4 cm)
Package 2 Weight 1.9 oz (53.0 g)
Unit Type of Package 3 S03
Number of Units in Package 3 800
Package 3 Height 11.8 in (30.0 cm)
Package 3 Width 11.8 in (30.0 cm)
Package 3 Length 15.7 in (40.0 cm)
Package 3 Weight 19.6 lb(US) (8.9 kg)
Contractual warranty
Warranty 18 months
Peso 0.01 kg
Dimensiones 5.4 × 5.6 × 4.4 cm
Marcas

Schneider Electric

Marca

Schneider Electric
