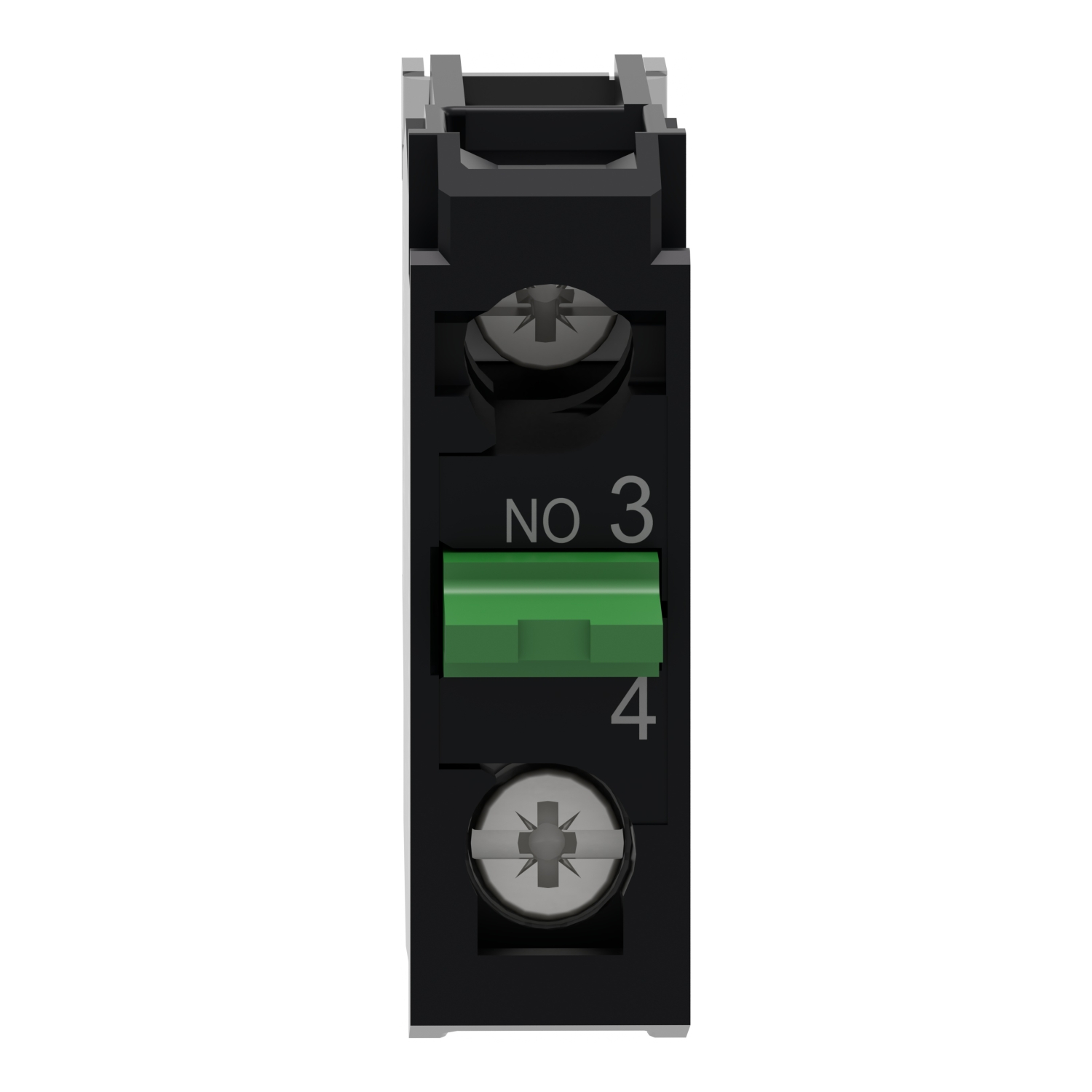

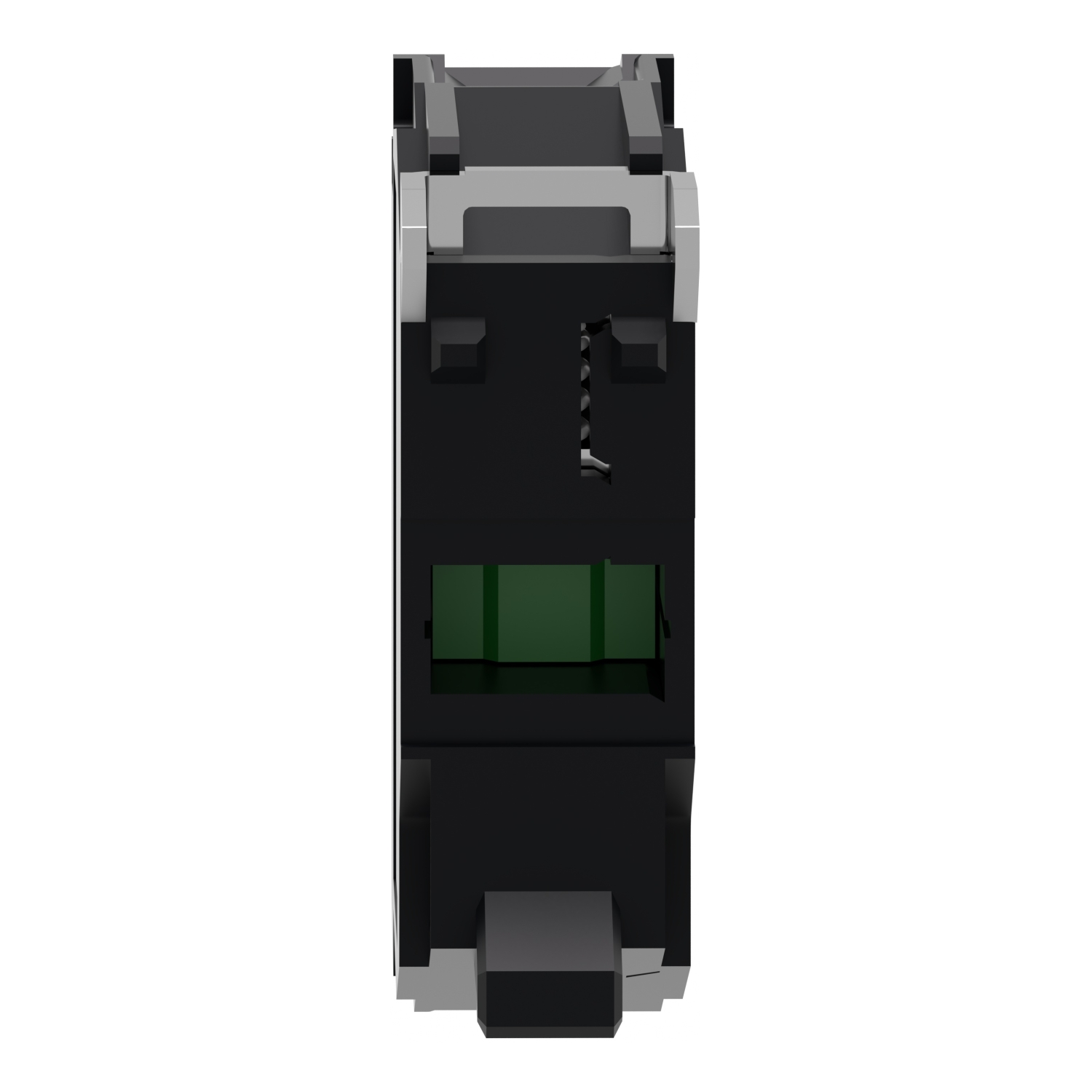

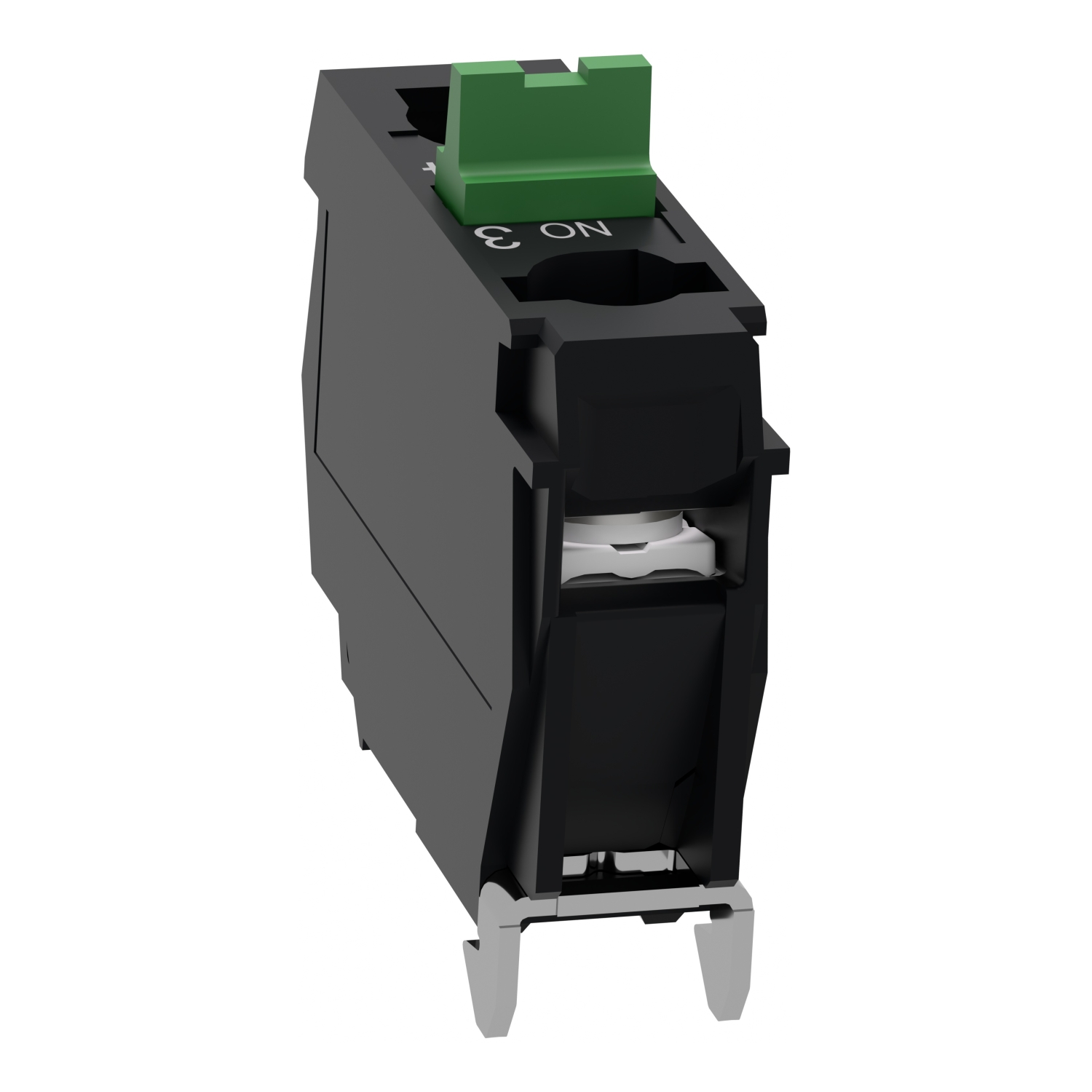

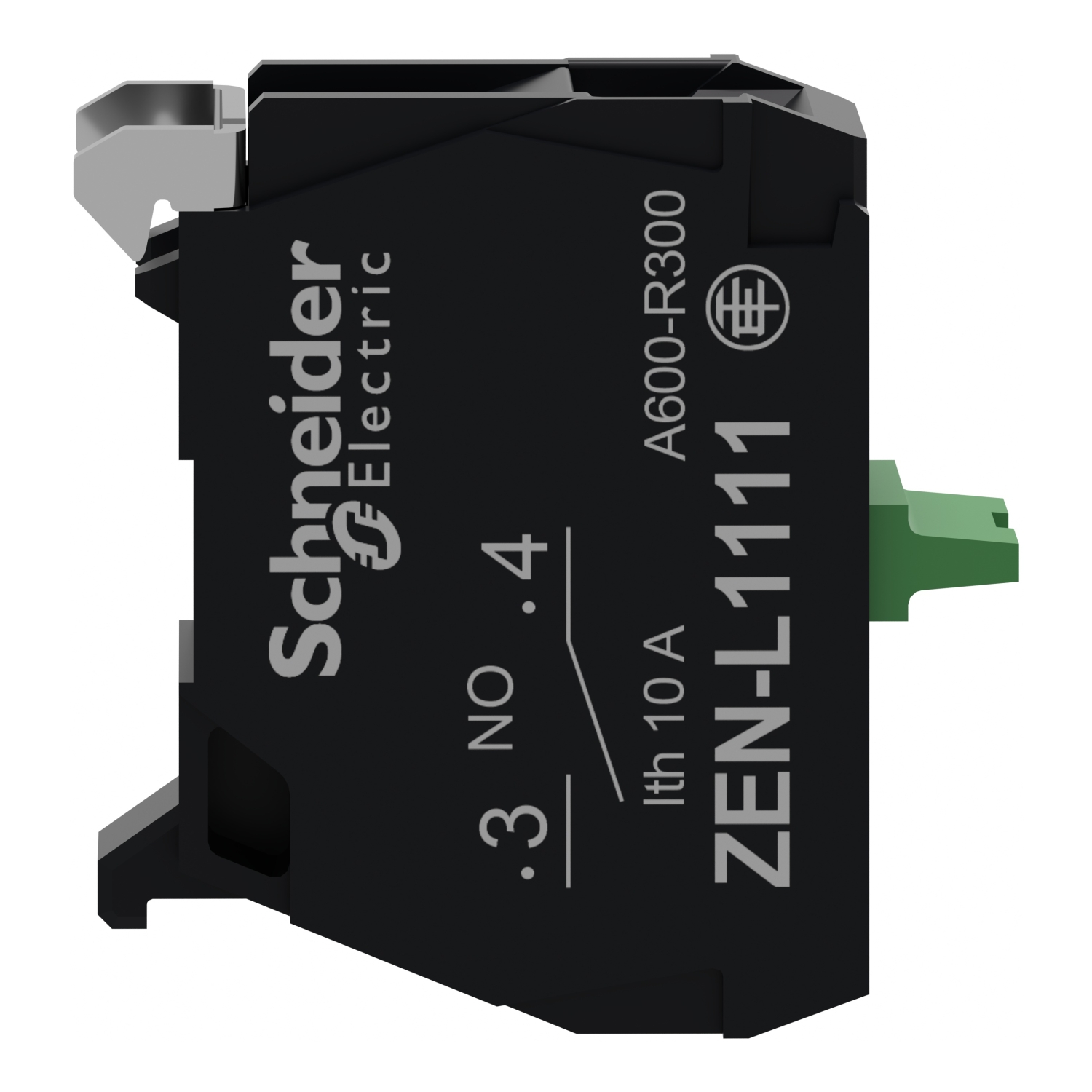

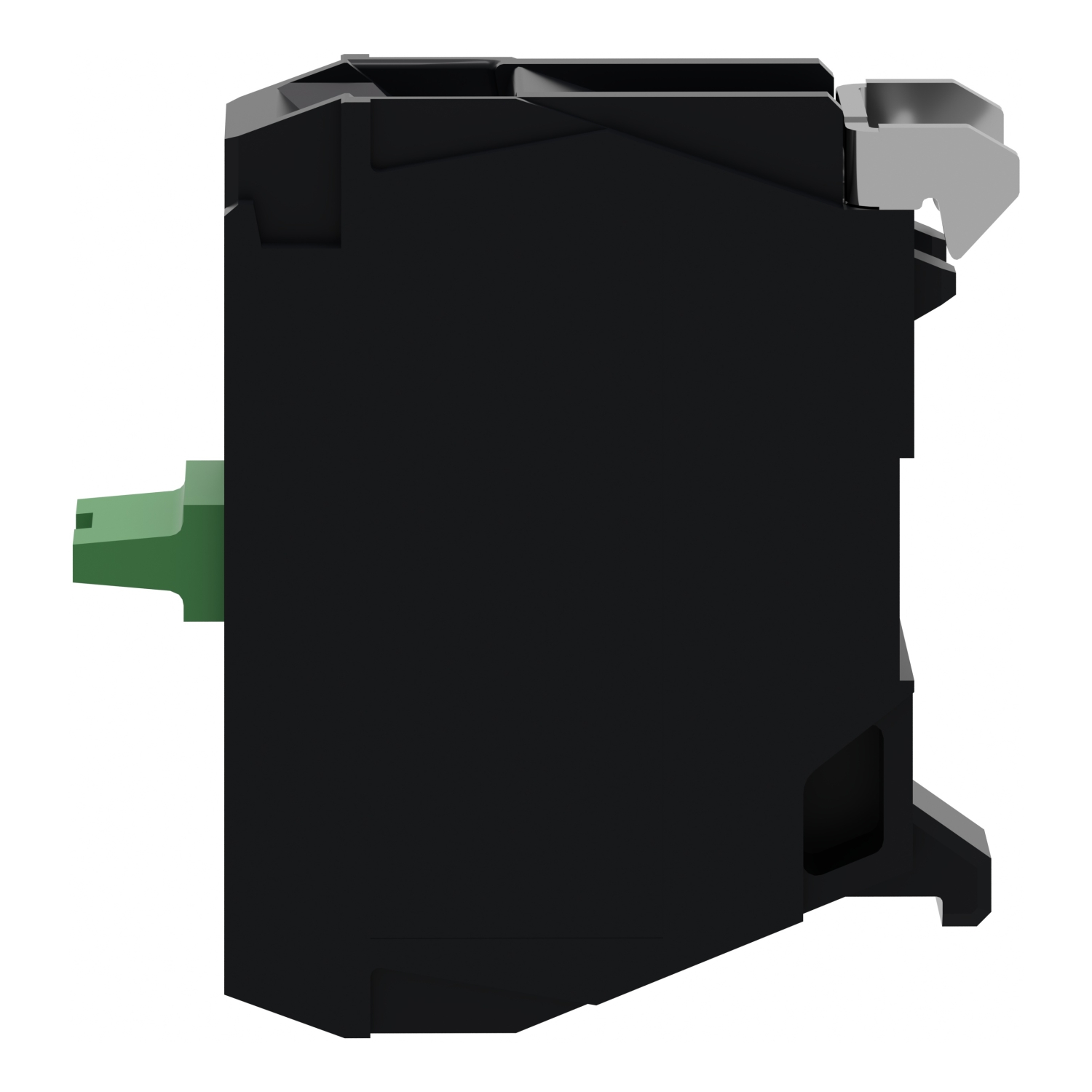

ZENL1111, Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal

MXN $368.00 - (IVA Incluido) + Envío

1715 disponibles

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Comprar Ahora
SKU: ZENL1111

Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal

ZENL1111

Main
Range of Product Harmony XAL
Harmony XAPS
Product or Component Type Contact block
Device short name ZENL
product destination For XB5 Ø 22 mm control and signalling units
For XAPS control station
Mounting of block Rear mounting
Sale per indivisible quantity 5
Contacts type and composition 1 NO
Complementary
Assembly style For customer assembly
Net Weight 0.033 lb(US) (0.015 kg)
Contact operation Slow-break
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)
Operating force 2.3 N NO changing electrical state
Operating torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability 10000000 cycles
Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Maximum resistance across terminals 25 MOhm
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Additional information Mounting on integrated plate in the box
Electrical composition code SR1 3)
SR2 2)
MR1 2)
Environment
protective treatment TH
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
IP degree of protection IP20 IEC 60529
Standards IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-1
UL 508
IEC 60947-5-5
JIS C8201-5-1
IEC 60947-5-4
JIS C8201-1
Vibration resistance 5 gn 12…500 Hz)IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222475
Discount Schedule 0CS2
GTIN 3389110115079
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.394 in (1.000 cm)
Package 1 Width 1.181 in (3.000 cm)
Package 1 Length 1.378 in (3.500 cm)
Package 1 Weight 0.317 oz (9.000 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 1.772 in (4.500 cm)
Package 2 Width 2.165 in (5.500 cm)
Package 2 Length 2.362 in (6.000 cm)
Package 2 Weight 1.869 oz (53.000 g)
Unit Type of Package 3 S03
Number of Units in Package 3 800
Package 3 Height 11.811 in (30.000 cm)
Package 3 Width 11.811 in (30.000 cm)
Package 3 Length 15.748 in (40.000 cm)
Package 3 Weight 19.429 lb(US) (8.813 kg)
Contractual warranty
Warranty 18 months
Peso 0.009 kg
Dimensiones 3 × 3.2 × 1 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
