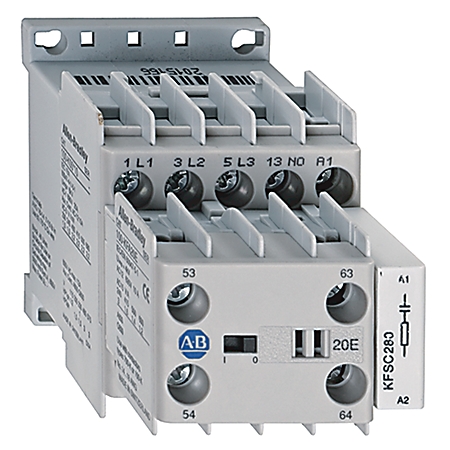

100-K12ZJ10M, IEC 12 A Miniature Contactor
MXN $4,993.00 - (IVA Incluido) + Envío
Sin existencias
IEC 12 A Miniature Contactor
Marca:Allen-Bradley
Technical Specifications
Mechanical
| Number of normally open contacts as main contact | 3 |
|---|---|
| Number of auxiliary contacts as normally open contact | 1 |
| Vibration resistance | IEC 60068-2 |
| Shock resistance | IEC 60068-2 |
| Altitude, max | 2000 m (NN) per IEC 60947-4 |
| Lifespan | Mechanical DC control: 15000000 ops |
| Switching frequency, max | 250 ops/h, AC-4 (approximately 200000 operations) |
| Recommended torque | 10.6 lb.in |
| Weight | DC: 0.2 kg |
| Conductor cross section | Main contact, 2 conductor: 1…2.5 mm^2 + 1…4 mm^2 |
| Protection class | IP2X |
Electrical
| Voltage type for actuating | DC |
|---|---|
| Type of electrical connection of main circuit | Screw connection |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Optional overload relays | Bimetallic |
| Main current circuit resistance | 2.2 mOhm |
| Power dissipation (all circuits) | 0.9 W @ 400V, AC-3, Ie |
| Rated filament current | 9 A @ 230/240V, AC-5b |
| Rated isolation voltage (Ui) | IEC: 690V, UL, CSA: 600V |
| Switching of motor load | 11 A @ 400V, AC-7b (50 Hz) |
| Packaging | Bulk pack (quantity of 20) |
| Auxiliary contacts | IP2X |
| Rated current (enclosed) | 9.6 A @ 230V, 3-phase per UL/CSA |
| Rated power (enclosed) | 7.5 Hp @ 575V, 3-phase per UL/CSA |
| Auxiliary contact configuration | 1 NO |
| Capacitance, max | 750 µF @ short-circuit current of 10 kA |
| General purpose current (enclosed) | 18 A per UL/CSA |
| Operating time, closing delay | 6…12 ms DC (conventional) |
| Switching of low inductive loads | 20 A @ 400V, AC-7a per IEC 61095 (50 Hz) |
| Short time withstand (Icw) | 96 A for 10 s, 60 °C |
| Operating time, opening delay | 8…12 ms with integrated diode |
| Coil consumption, hold-in | Cold 3.0 W, warm 2.6 W DC (conventional) |
| Coil consumption, pick-up | Cold 3.0 W, warm 2.6 W DC (conventional) |
| Total power dissipation | DC control: 3.5 W @ 400V, AC-3, Ie |
| Operating limits, dropout | (0.2…0.75) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| Switching of lamps | Gas discharge lamps, open: 18 A @ 40 °C, AC-5a |
| Insulation class of the coil | Class F per IEC 60085, Class 105 insulation system per UL 508 |
| Rating for switching AC motors | 3-poles: 7-1/2 Hp @ 575V (AC-2, AC-3, AC-4), 3-phase (60 Hz) |
| Switching of hermetically sealed cooling compressor motors | 18 A @ 400V, AC-8a (manual reset of overload release (50 Hz)) |
| Operating limits, pick-up | (0.85…1.1) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| UL class K5 and RK5 fuses rating | 40 A @ 600V, 5 kA available fault current per UL 508 and CSA 22.2 No. 14 |
| DIN fuses (gG, gL) current rating | Type 2 (per IEC 60947-4-1): 20 A @ 400 V, 50 kA available fault current |
| Coil voltage | 24 (17-30)V DC |
| Rated operational current (Ie) | 9.2 A @ 500V, AC-4 (50 Hz), ambient temperature 60 °C |
| UL class J and CSA HRCI-J fuses rating | 30 A @ 600V, 50 kA available fault current per UL 508 and CSA 22.2 No. 14 |
| Switching of power transformers | Apparent power: 5 kVA @ 500V, AC-6a, 50 Hz (n = 30) |
| Rated operational power (Pe) | 8.3 kW @ 240V, AC-1 (50 Hz), ambient temperature 40 °C |
| Switching of DC loads | 3-poles in series: 9 A @ 48/60V (Non-inductive or slightly inductive loads or resistance furnaces DC-1 at 60 °C) |
| Optional accessories | Front-mount auxiliary contacts, surge suppressors, electronic timers, mechanical interlocks |
| Features | Mini-contactors, Uniform panel mounting dimensions, Panel mounting or mounting on 35 mm DIN Rail, Made of environmentally friendly materials |
| UL class CC and CSA HRCI-MISC fuses rating | 30 A @ 600V, 50 kA available fault current per UL 508 and CSA 22.2 No. 14 |
Environmental
| Climatic withstand | IEC 60068-2-30 |
|---|---|
| Ambient temperature | Storage: -55…80 (-67…176) |
| Peso | 0.202 kg |
|---|---|
| Dimensiones | 23.8 × 0.61 × 11.6 cm |
| Marcas | Allen-Bradley |
