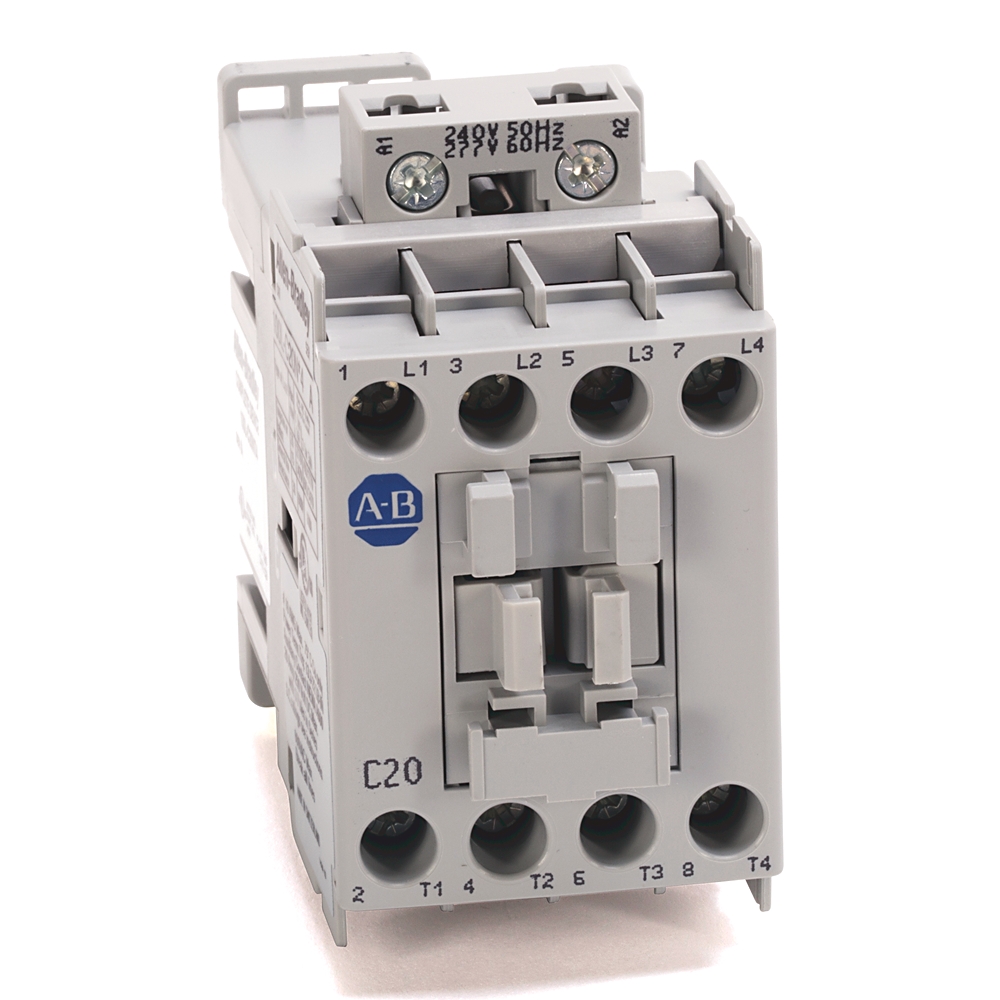

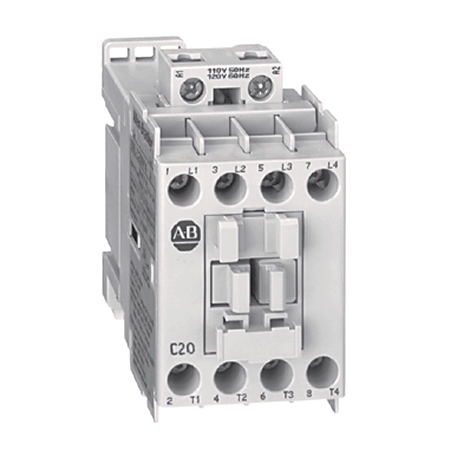

100L-C20ND4, Lighting Contactor
MXN $10,199.00 - (IVA Incluido) + Envío
1 disponibles
Lighting Contactor
Marca:Allen-Bradley
| Voltage type for actuating | AC |
|---|---|
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Type of electrical connection of main circuit | Screw connection |
| Number of poles | 4 |
| Continuous ampere rating | 30 A |
| Current rating for tungsten load | 20 A max. @ 3-Phase AC Poles to Load voltage 480Y |
| Current rating for ballast load | 20 A max. @ 3-Phase AC Poles to Load voltage 480Y |
| General use resistance heating | 30 A max. @ 3-Phase AC Poles to Load voltage 600V |
| Features | Multi-pole, Electrically held |
| Modular version | True |
| Contactor type | UL |
| Contactor size | 20 A |
| Enclosure type rating | Open |
|---|
| Peso | 0.39 kg |
|---|---|
| Dimensiones | 9.6 × 9.09 × 5 cm |
| Marcas | Allen-Bradley |
Marca
Allen-Bradley
| Type | Resource | Publication |
|---|---|---|
| General | Repair Parts List | -- |
| General | Product Cutsheet | -- |
| Technical Data | 100-td014_-en-p | 100-TD014 |
