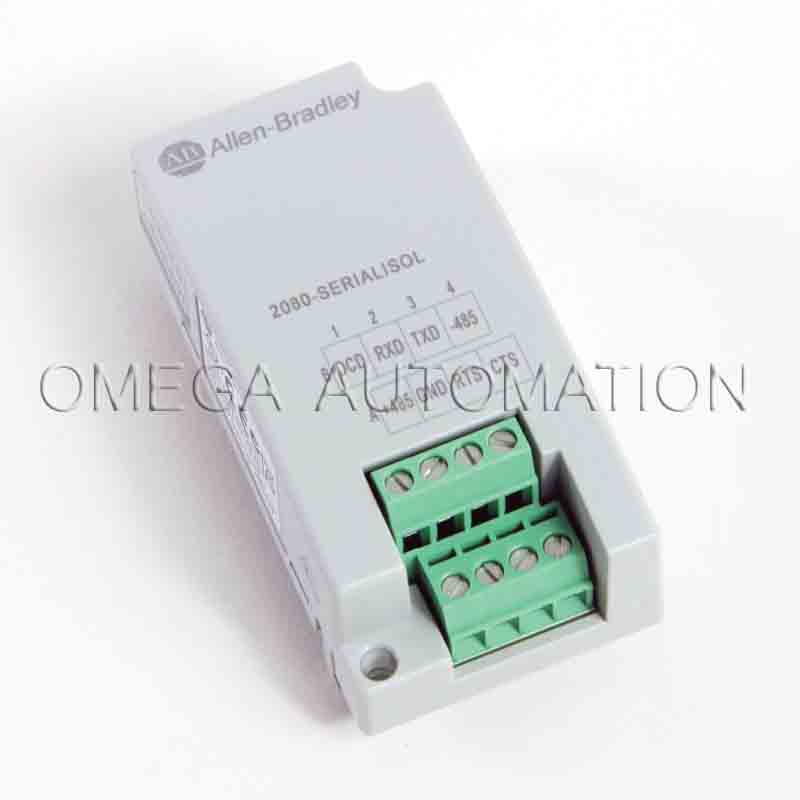

Technical Specifications
Electrical
| Suitable for safety functions | No |
|---|---|
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for other bus systems | No |
| Redundancy | No |
| IO link master | No |
| Supporting protocol for DeviceNet Safety | Yes |
| Supporting protocol for EtherNet/IP | No |
| Transmission rate | 19.2 kBps |
| Data transmission type | Serial |
| Supporting protocol | Modbus RTU (RS232 and RS485) |
| Wire size | 0.14…1.5 mm² (26…16 AWG) solid copper wire or, 0.14…1.0 mm² (22…18 AWG) stranded copper wire, Rated at 90 °C (194 °F) insulation max |
| Supporting protocol for LON | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for SUCONET | No |
| With potential separation | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| SIL according to IEC 61508 | None |
| Cable length using RS485, Max | 1000 |
| Isolated voltage | 500V AC |
| Terminal screw torque | 0.22…0.25 Nm (1.95…2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
Environmental
| Surrounding air temperature, max | 65 °C |
|---|---|
| Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10…500 Hz |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| EFT/B immunity | IEC 61000-4-4: ± 2 kV @ 5 kHz on communication ports |
| Shock | Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock) |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz |
| Surge transient immunity | IEC 61000-4-5: ± 2 kV line-earth(CM) on communication ports |
| Nonoperating temperature | -40…85 °C (-40…185 °F), IEC60068-2-1 (Test Ad, operating cold), IEC60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Operating temperature | -20…65 °C (-4…149 °F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Radiated RF immunity | IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz, |
Certification
| North American temperature code | T4 |
|---|
Mechanical
| Mounting torque | 0.2 Nm |
|---|
