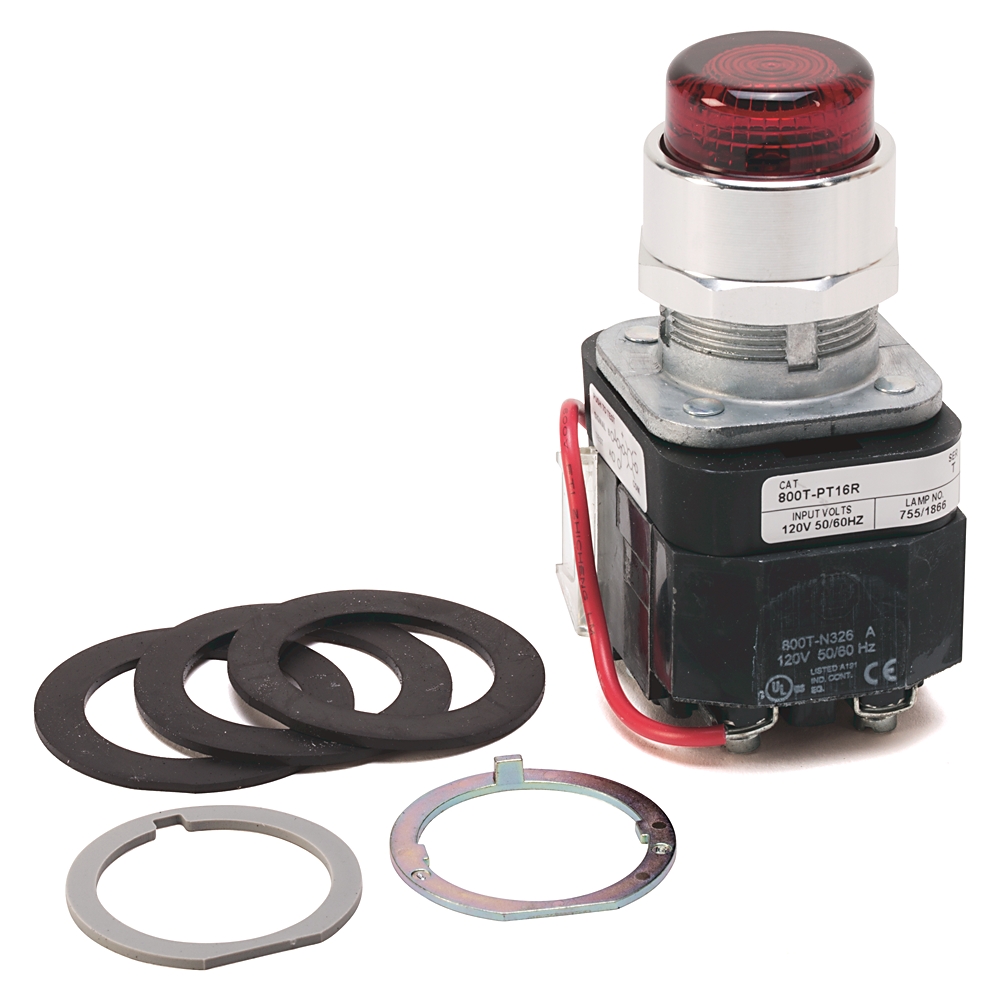

Name: 800T-PTH16R, 30mm Pilot Light 800T PB
SKU: 800T-PTH16R
Availability: OutOfStock

Technical Specifications

Number of indicator lights	1
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Illumination lamp type	LED
Contact block operational voltage, max	600V AC, 600V DC
Contact block utilization category (DC)	Q600, DC-13
Operator construction/material	Metal
Illumination module type	Transformer
Illumination module input voltage	120V AC, 50/60 Hz
Suitable for illumination	Yes

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	250000
Contact block electrical design life (cycles, at max. load)	1000000
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator function	Push-to-test
Operator type	Pilot light, with lamp test feature
Vibration	10 G maximum
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 – 18 AWG (x2)
Illumination module termination wire range	14 – 18 AWG (x2)
Contact block termination tightening torque	6 – 8 lb – in / 0.7 – 0.9 N-m
Illumination module termination tightening torque	6 – 8 lb – in / 0.7 – 0.9 N-m

Terminations with finger safe covers	No
Operator cap/button shape	Round
Operator cap type	Fresnal
Operator cap color	Red
Operator cap/button material	Plastic
Contact block configuration	1-NO 1-NC standard contacts

Certifications	ABS, CCC, CE, CSA, EAC, GOST, UL

Marca

RESOURCE	PUBLICATION NUMBER
Technical Data	800-TD009

Find all available product literature for this product in the Literature Library results.
