MPL-B580F-MJ72AA, MP-Series MPL 480V AC Rotary Servo Motor
MXN $187,741.55MXN $187,741.55 (sin impuestos)× -
2090-CPWM7DF-14AA09, Motor Power Only, SpeedTec DIN Connector, Drive-end, Flying-lead, Standard (Non-Flex), 14AWG, 9M
MXN $9,288.79MXN $9,288.79 (sin impuestos)×

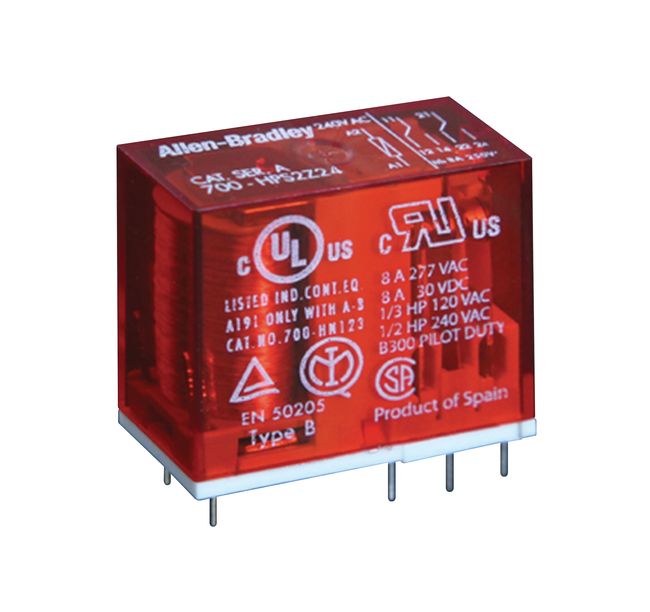

700-HPS2Z24, 24V DPDT PCB Style 2 Pole Safety Relay
MXN $1,166.00 - (IVA Incluido) + Envío
233 disponibles
24V DPDT PCB Style 2 Pole Safety Relay
Marca:Rockwell Automation
| Number of contacts as change-over contact | 2 |
|---|---|
| Nominal current | 8 A |
| Complete with socket | False |
| With LED indication | False |
| Voltage type for actuating | DC |
| Rated control supply voltage at DC | 24 V |
| Type of electric connection | Plug-in connection |
| With detachable clamps | False |
|---|---|
| With forced-guided contacts | True |
| Degree of protection (IP) | Other |
| Mechanical life operations | DC coils: 10000000 |
| Shock | Fragility: 15 G |
| Vibration | Fragility: 2.5 G |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
| Operating temperature | -40 °C |
|---|---|
| Storage temperature | -50 °C |
| Contact material | Silver Nickel (AgNi) |
|---|---|
| Material of contact surface | Other |
| Peso | 0.021769 kg |
|---|---|
| Dimensiones | 0.47 × 6.35 × 5.08 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | 3D Darwing (PDF) | -- |
| General | Short Circuit Ratings Data Sheet | -- |
| General | Product Cutsheet | -- |
| Technical Data | 700-td552_-en-p | 700-TD552 |
|
3D Darwing (PDF)
General
-- |
|
Short Circuit Ratings Data Sheet
General
-- |
|
Product Cutsheet
General
-- |
|
700-td552_-en-p
Technical Data
700-TD552 |
