800F-PX11, 22mm Back of Panel Composite 800F PB
MXN $1,140.70 - (IVA Incluido) + Envío
13 disponibles

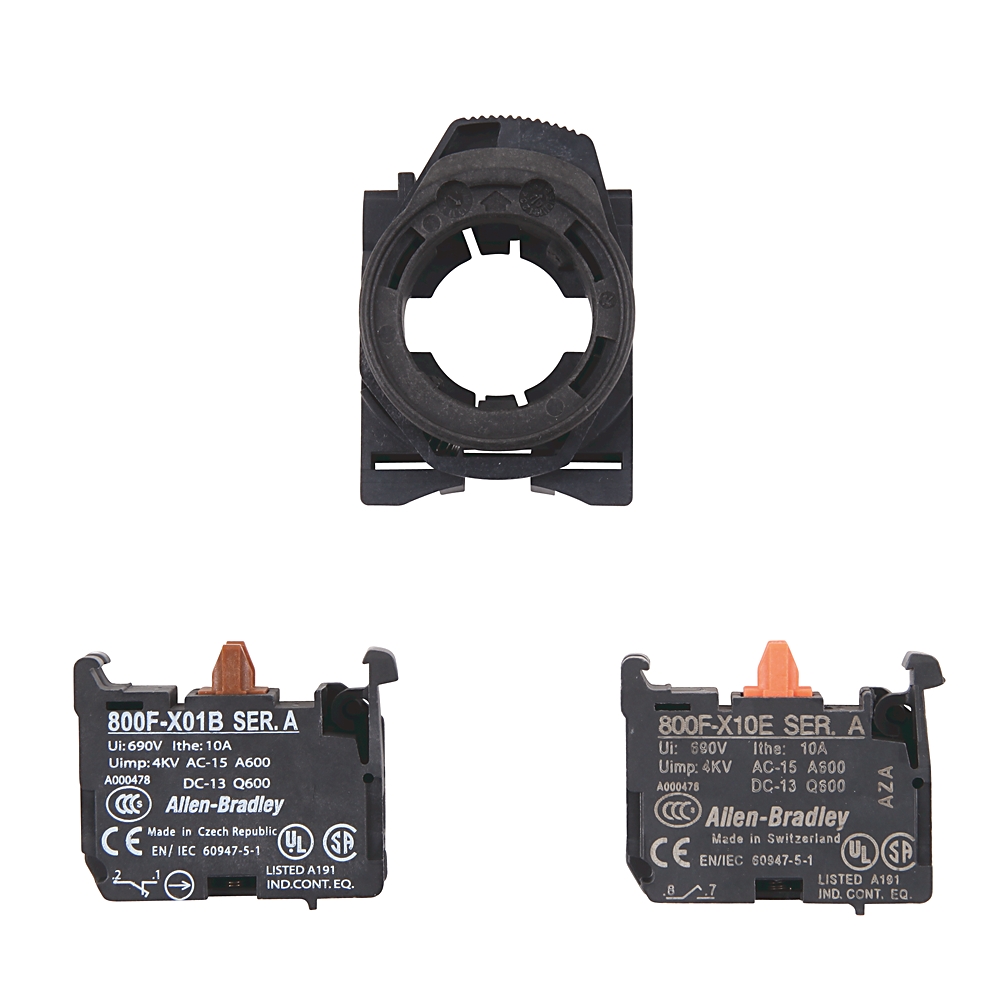

22mm Back of Panel Composite 800F PB
Marca:Rockwell Automation
| Product Type | 22mm Back of Panel Composite |
|---|
| Number of contacts as normally closed contact | 1 |
|---|---|
| Number of contacts as normally open contact | 1 |
| Contact block configuration | 1 NO/1 NC |
| Contact block type | Standard |
| Illumination module type | No power module |
| Illumination module input voltage | No power module |
| Type of electric connection | Screw connection |
|---|---|
| Termination style | Screw |
| Illumination lamp type | No power module |
| Latch material | Plastic |
|---|---|
| Contact block termination wire range | #18…12 AWG (0.75…2.5 mm²) |
| Vibration | 10 g |
| Shock | 100 g |
| Operator mounting hole dimension | 22.5 mm |
| Contact block termination tightening torque | 6 – 8 in-lb / 0.7 – 0.9 N-m |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25…60 °C (77…140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
| Peso | 0.029484 kg |
|---|---|
| Dimensiones | 10 × 5.41 × 2.89 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| Technical Data | 800-td008_-en-p | 800-TD008 |
| User Manual | 800-um001_-en-p | 800-UM001 |
|
800-td008_-en-p
Technical Data
800-TD008 |
|
800-um001_-en-p
User Manual
800-UM001 |
