BMXDRA1605 discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

MXN $9,328.00 - (IVA Incluido) + Envío

49 disponibles

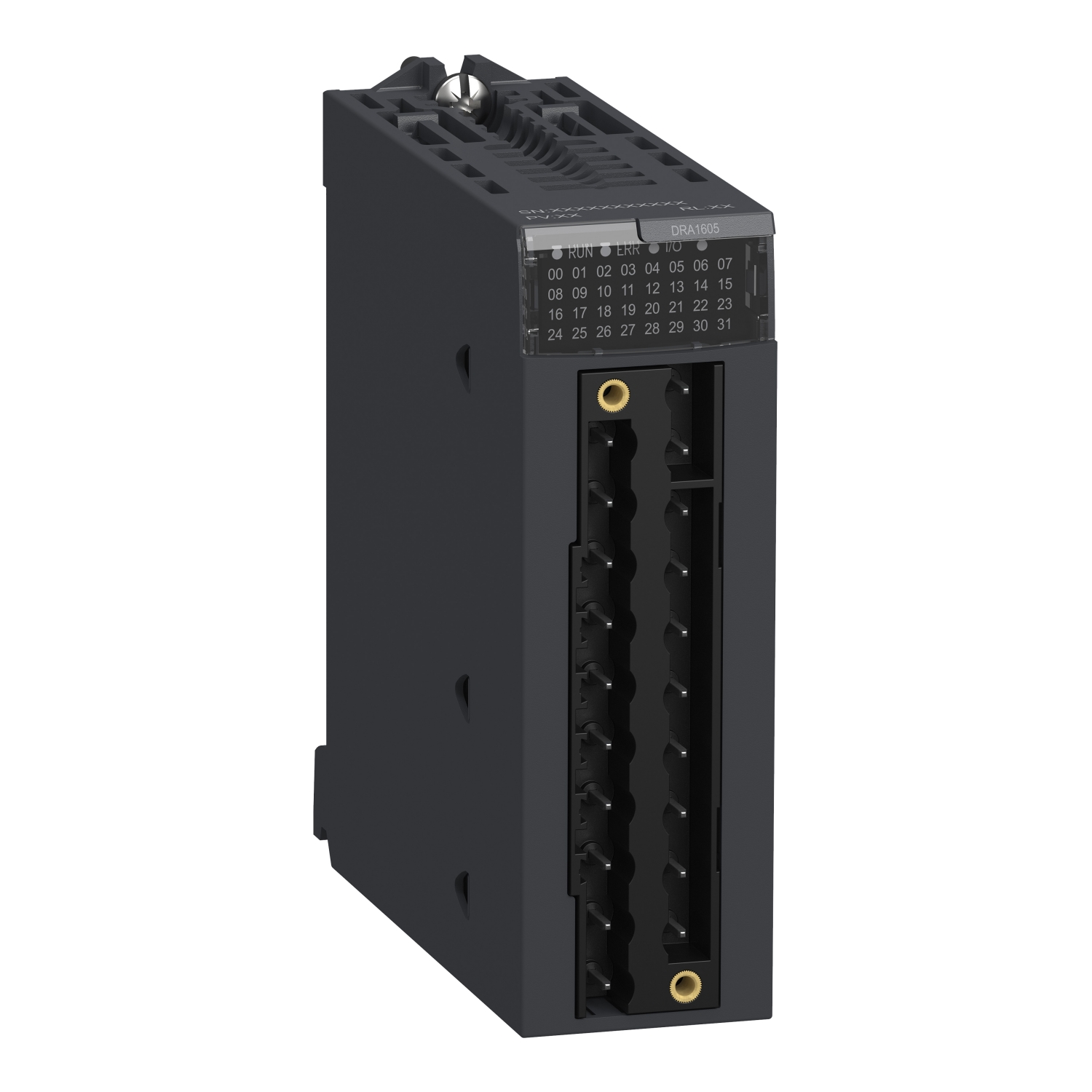

This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Comprar Ahora
SKU: BMXDRA1605

discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

BMXDRA1605

Main
Range of Product Modicon X80
Product or Component Type Discrete output module
Discrete output number 16 EN/IEC 61131-2
Discrete output type Relay
Discrete output voltage 24…48 V 19…60 V DC
24…240 V 19…264 V AC
Complementary
[Ith] conventional free air thermal current 2 A
Insulation resistance > 10 MOhm 500 V DC
Power dissipation in W 3 W
Response time on output < 8 ms activation
< 10 ms deactivation
Typical current consumption 100 mA 3.3 V DC
95 mA 24 V DC
MTBF reliability 2100000 H
Output overload protection Use 1 fast blow fuse per channel or group of channel
Output overvoltage protection Use discharge diode on each output DC
Use RC circuit on each output AC
Use ZNO surge limiter on each output AC
Output short-circuit protection Use 1 fast blow fuse per channel or group of channel
Minimum switching current 1 mA 5 V DC
Electrical durability AC-15 100000 cycles 240 VA 200 V 0.7)
AC-15 100000 cycles 120 VA 200 V 0.35)
AC-12 100000 cycles 200 VA 100 V
AC-12 100000 cycles 80 VA 48 V
AC-12 100000 cycles 50 VA 24 V
AC-15 100000 cycles 120 VA 100 V
AC-15 100000 cycles 120 VA 24 V
AC-15 100000 cycles 120 VA 48 V
DC-12 100000 cycles 24 W 24 V
DC-13 100000 cycles 10 W 24 V
DC-13 100000 cycles 10 W 48 V
AC-15 300000 cycles 72 VA 200 V 0.7)
AC-15 300000 cycles 36 VA 200 V 0.35)
AC-12 300000 cycles 200 VA 200 V
AC-12 300000 cycles 80 VA 100 V
AC-12 300000 cycles 50 VA 48 V
AC-15 300000 cycles 36 VA 100 V
AC-15 300000 cycles 72 VA 100 V
AC-15 300000 cycles 36 VA 48 V
AC-15 300000 cycles 72 VA 48 V
AC-15 300000 cycles 36 VA 24 V
AC-15 300000 cycles 72 VA 24 V
DC-13 300000 cycles 3 W 24 V
DC-13 300000 cycles 3 W 48 V
DC-13 7000 cycles 24 W 24 V
DC-13 7000 cycles 24 W 48 V
DC-12 50000 cycles 24 W 48 V
Status LED 1 LED (Green) RUN
1 LED per channel (Green) channel diagnostic
1 LED (Red) ERR
1 LED (Red) I/O
Net Weight 0.33 lb(US) (0.15 kg)
Environment
IP Degree of Protection IP20
Dielectric strength 2000 V AC 50/60 Hz 1 min
Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Operating altitude 0…6561.68 ft (0…2000 m)
2000…5000 m with derating factor
Ordering and shipping details
Category US1PC3418160
Discount Schedule PC34
GTIN 3595863909234
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.087 in (5.300 cm)
Package 1 Width 4.331 in (11.000 cm)
Package 1 Length 4.528 in (11.500 cm)
Package 1 Weight 6.314 oz (179.000 g)
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 6.526 lb(US) (2.960 kg)
Contractual warranty
Warranty 18 months
Peso 5 kg
