NF430L6C, Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
MXN $1,252,799.00 - (IVA Incluido) + Envío
7 disponibles

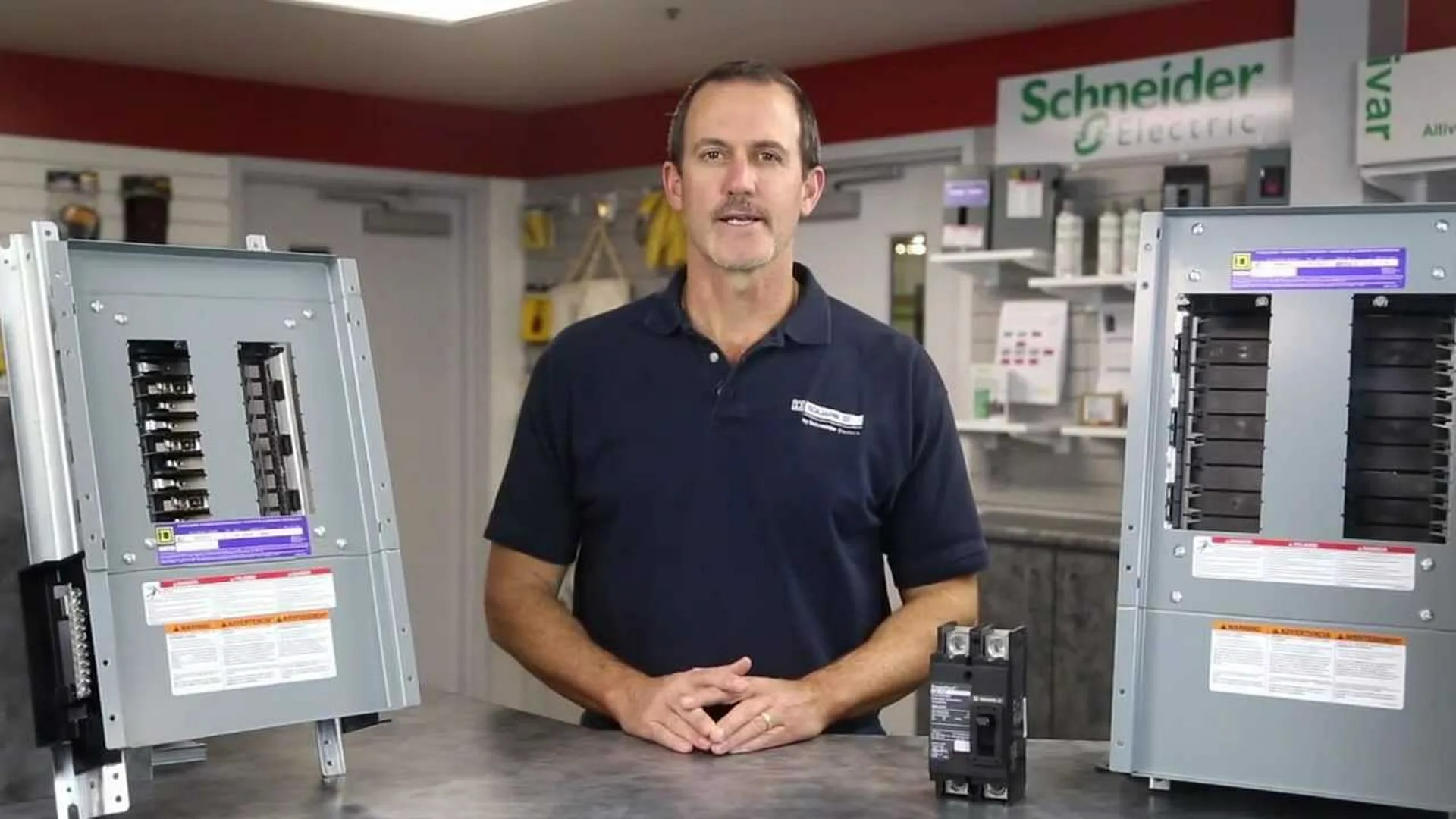

NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 600A 600Y/347 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 30 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 21 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Marca:Schneider Electric
Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
NF430L6C
| Panelboard Type | Main lugs |
|---|---|
| Branch Circuit Breaker Type | EDB/EDG/EDJ |
| Busbar Material | Copper |
| Number of spaces | 30 |
|---|---|
| Enclosure Nominal Height | 50 in (1270.0000000000 mm) |
| Enclosure Nominal Width | 20 in (508.0000000000 mm) |
| Enclosure Nominal Depth | 5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12 |
| Line Rated Current | 600 A |
| [Iu] rated interrupted current | 65 kA |
| Number of Phases | 3 phase 4 wires |
| Voltage Rating | 600Y/347 V AC |
| Connections – terminals | Lug line AWG 1/0…750 kcmil aluminium Lug neutral AWG 1/0…750 kcmil aluminium |
| Tightening torque | 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.3 in² (53.48…177.3 mm²) (AWG 1/0…350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.6 in² (53.48…380 mm²) (AWG 1/0…750 kcmil) 375.006 lbf.in (42.37 N.m) 0.08…0.2 in² (53.48…152 mm²) (AWG 1/0…300 kcmil) |
| Height | 46 in (1168.40 mm) |
| Width | 10.44 in (265.18 mm) |
| Net Weight | 31.00 lb(US) (14.06 kg) |
| Standards | UL 67 CSA C22.2 |
|---|
| Category | US1PE1A08350 |
|---|---|
| Discount Schedule | PE1A |
| GTIN | 785901116196 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.2 in (15.7 cm) |
| Package 1 Width | 14.2 in (36.1 cm) |
| Package 1 Length | 49.41 in (125.5 cm) |
| Package 1 Weight | 31.00 lb(US) (14.061 kg) |
| Warranty | 18 months |
|---|
| Peso | 5 kg |
|---|---|
| Dimensiones | 15 × 15 × 15 cm |
| Marcas | Schneider Electric |
