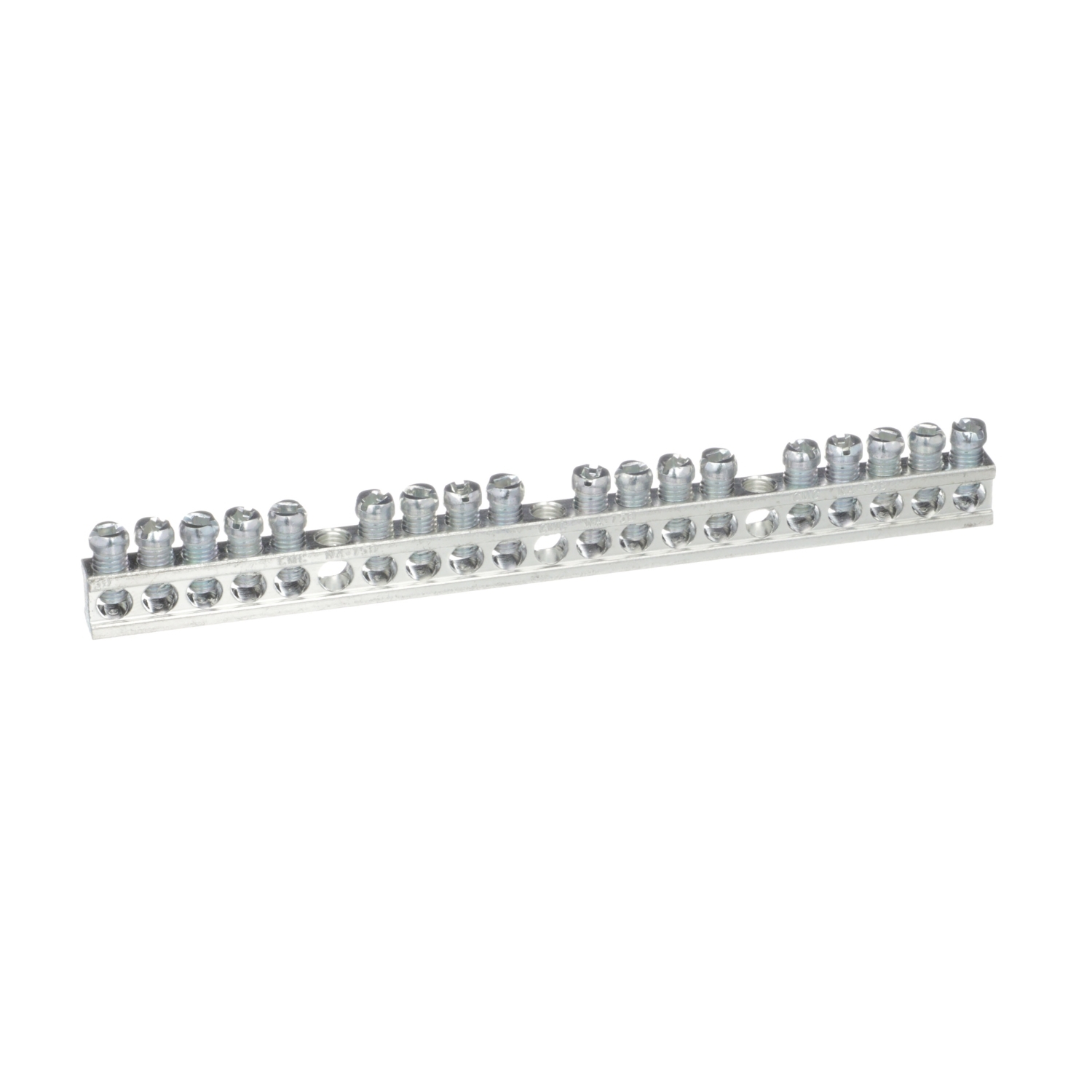

Name: PK18GTA, Load center accessory, QO/Homeline, ground bar kit, 18 terminals
SKU: PK18GTA
Availability: InStock

PK18GTA, Load center accessory, QO/Homeline, ground bar kit, 18 terminals

MXN $475.00 - (IVA Incluido) + Envío

58 disponibles

QO® Circuit Breaker Load Centers, PK18GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. All metering stacks are shipped from the factory with meter sockets and vertical bus bars pre-installed, and require a minimum of on site labour to install the circuit breakers and main bus links. Screw-on, sealable covers over the meter sockets and circuit breakers are finished with a grey epoxy powder coating. Provision to lock and seal the circuit breaker handles in the “off” position has been made for the convenience of utilities and electrical inspectors. This 247/600V and 3 phases unit is avaible with 500A vertical bus bar. 3-pole Powerpact H-frame circuit breakers are required for the 125A, 7- jaw sub-service sections and are available from 60A-125A. The unit comes in sizes of height 79.62 in, 15.33 in width and 6.5 in of depth. All meter stacks are designed for CSA Type A “cold metering” in which the individual sub-service breakers are connected on the line side of the meter sockets thereby protecting the meter and all electrical equipment installed subsequent to it.

Comprar Ahora

Main
product line	QO
product type	Bar

Complementary
Number of connectors	18
wire size	AWG 14…AWG 4 copper AWG 12…AWG 4 aluminium
Provided equipment	2 screw
Bar length	6.6 in (167 mm)
Maximum length of segment	3.1 in (80 mm)
Device mounting	Direct mounting back of enclosure
Height	0.437 in (11.100 mm)
Depth	0.312 in (7.925 mm)
Tightening torque	30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14…AWG 10, copper 20 lb.in, AWG 12…AWG 10, aluminium 35 lb.in, AWG 6…AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14…AWG 12, copper 25 lb.in, AWG 12…AWG 10, aluminium

Ordering and shipping details
Category	US1DE3A00102
Discount Schedule	DE3A
GTIN	785901026426
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	0.63 in (1.6 cm)
Package 1 Width	4.41 in (11.2 cm)
Package 1 Length	7.13 in (18.1 cm)
Package 1 Weight	2.6 oz (73 g)
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	3.80 in (9.652 cm)
Package 2 Width	6.40 in (16.256 cm)
Package 2 Length	6.80 in (17.272 cm)
Package 2 Weight	31.199 oz (884.504 g)
Unit Type of Package 3	PAL
Number of Units in Package 3	2160
Package 3 Height	26.50 in (67.31 cm)
Package 3 Width	40.00 in (101.6 cm)
Package 3 Length	48.00 in (121.92 cm)
Package 3 Weight	465.00 lb(US) (210.92 kg)
