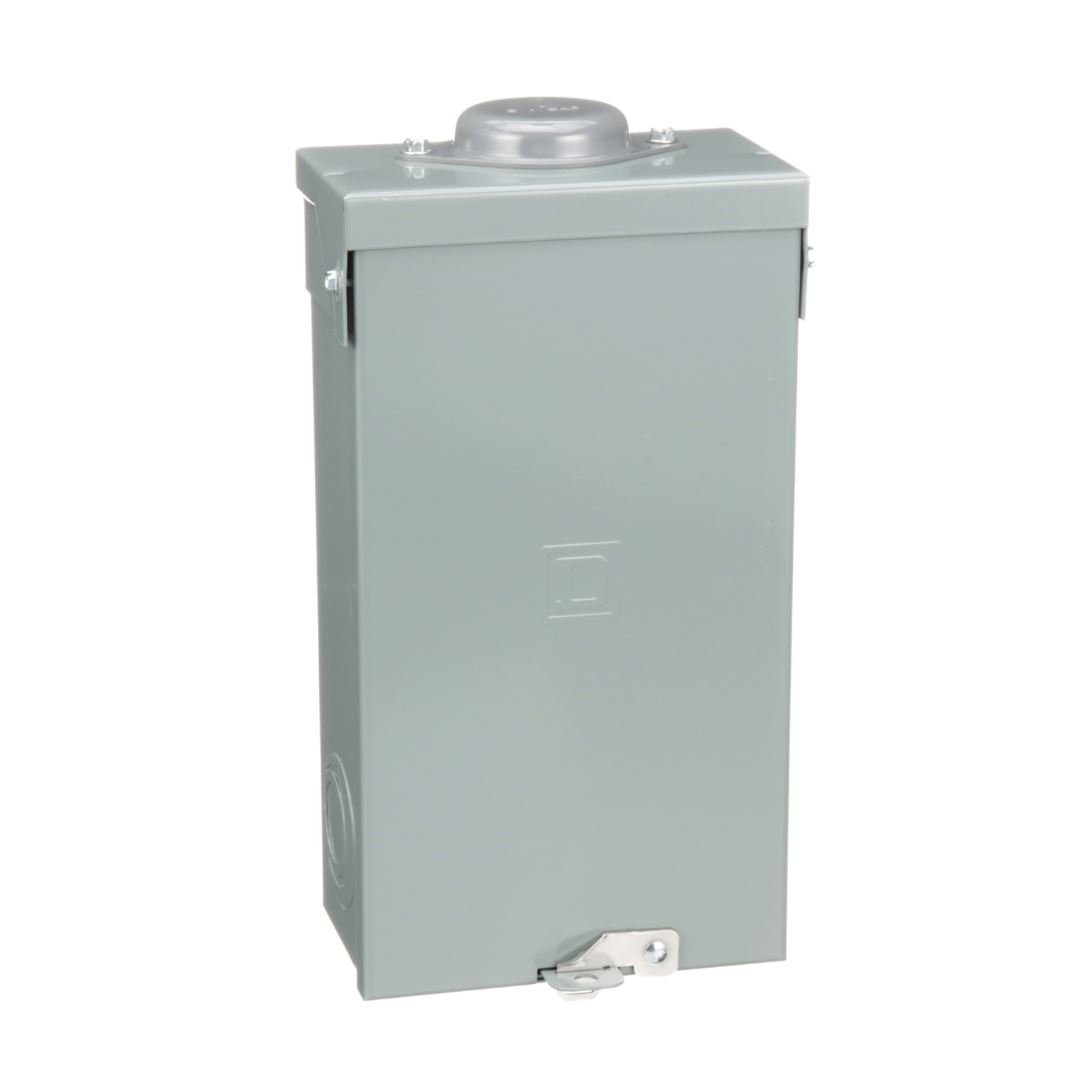

| Product Type | Enclosure |
|---|---|
| Range of Product | QO |
| Load Center Type | Main lugs |
| Current Rating | 100 A |
|---|---|
| Interrupt Rating | 22 kA |
| Number of Spaces | 3 |
| Maximum Number of Tandem Breakers | 0 |
| Number of Phases | 3 phase |
| Enclosure Rating | NEMA 3R outdoor |
| Breaker Compatibility | Circuit breaker QO 3P |
| Product Certifications | UL Listed CSA |
| Electrical Connection | Lugs |
| Surface Finish | Baked enamel Gray |
| Busbar Material | Tin plated copper |
| Ambient Air Temperature for Operation | 23 °F (-5 °C) 104 °F (40 °C) |
| Tightening Torque | 35 lb.in, AWG 14…AWG 10, copper 35 lb.in, AWG 12…AWG 10, aluminium Main lugs 40 lb.in, AWG 8…AWG 4, aluminium/copper Main lugs 50 lb.in, AWG 3…AWG 2, aluminium/copper Main lugs 35 lb.in, AWG 14…AWG 10, copper Main lugs 35 lb.in, AWG 12…AWG 10, aluminium |
| Box Number | 10R |
| Cover Type | Surface cover |
| Ground Bar | Grounding bar (ordered separately) |
| Enclosure Material | Welded galvannealed steel |
| Enclosure Type | Enclosure |
| Height | 13.2 in (335 mm) |
| Width | 6.9 in (176 mm) |
| Depth | 4.12 in (104.65 mm) |
| Category | US10DE200023 |
|---|---|
| Discount Schedule | 0DE2 |
| GTIN | 785901051770 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.00 in (12.7 cm) |
| Package 1 Width | 8.11 in (20.6 cm) |
| Package 1 Length | 14.49 in (36.8 cm) |
| Package 1 Weight | 8.09 lb(US) (3.67 kg) |
| Warranty | 18 months |
|---|
